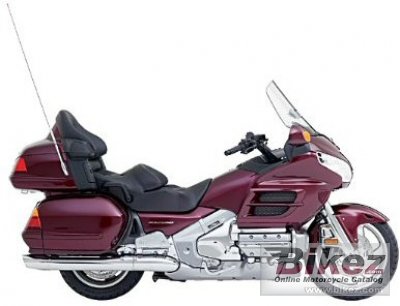

Honda GL 1800 Gold Wing ABS 20052005 Honda GL 1800 Gold Wing ABS specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Honda GL 1800 Gold Wing ABS |
| Model year | 2005 |
| Category | Touring |
| Price as new | US$ 19299. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.8 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Displacement | 1832.0 ccm (111.79 cubic inches) |
| Engine type | Six cylinder boxer, four-stroke |
| Power output | 118.0 HP (86.1 kW)) @ 5500 RPM |
| Torque | 167.0 Nm (17.0 kgf-m or 123.2 ft.lbs) @ 4000 RPM |
| Compression | 9.8:1 |
| Bore x stroke | 74.0 x 71.0 mm (2.9 x 2.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Programmed Fuel Injection (PGM-FI) with automatic choke |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Computer-controlled digital with three-dimensional mapping |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 29.3° |
| Trail | 109 mm (4.3 inches) |
| Front suspension | 45.0mm cartridge fork with anti-dive system |
| Front wheel travel | 140 mm (5.5 inches) |
| Rear suspension | Pro-Arm single-side swingarm with Pro-Link single shock with computer controlled spring-preload adjustment with two memory presets |
| Rear wheel travel | 104 mm (4.1 inches) |
| Front tire | 130/70-R18 |
| Rear tire | 180/60-R16 |
| Front brakes | Double disc. LBS 3-piston calipers. Anti-Lock Braking System® (ABS®). |
| Diameter | 296 mm (11.7 inches) |
| Rear brakes | Single disc. LBS 3-piston calipers. Anti-Lock Braking System® (ABS®). |
| Diameter | 316 mm (12.4 inches) |
| Physical measures and capacities | |
| Dry weight | 359.2 kg (792.0 pounds) |
| Power/weight ratio | 0.3285 HP/kg |
| Seat height | 739 mm (29.1 inches) If adjustable, lowest setting. |
| Wheelbase | 1692 mm (66.6 inches) |
| Fuel capacity | 24.98 litres (6.60 US gallons) |
| Other specifications | |
| Color options | Metallic Silver, Pearl Yellow, Bright Blue Metallic, Candy Black Cherry, Dark Gray Metallic, White |
| Starter | Electric |
| Comments | Model ID: GL1800A |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 05 Honda GL 1800 Gold Wing ABS discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2005 Honda GL 1800 Gold Wing ABS discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Honda bike | |
Offroad capabilities for the 2005 Honda GL 1800 Gold Wing ABS:  (49.0 out of 100)Click here for complete rating. |
|
