General information |
Motorcycle name
|

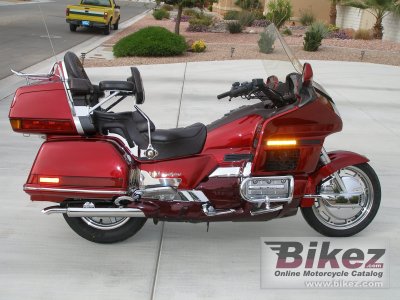

Honda GL 1500 SE |
Year of manufacture
|
1994 |
Type
|
Touring |
Rating
|
3.5 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
Engine and transmission |
Engine size
|
1520.0 ccm (92.75 cubic inches) |
Type of engine
|
Six cylinder boxer, four-stroke |
Output
|
100.0 HP (73.0 kW)) @ 5000 RPM |
Torque
|
150.1 Nm (15.3 kgf-m or 110.7 ft.lbs) @ 4000 RPM |
Top speed
|
159.0 km/h (98.8 mph) |
Compression
|
9.8:1 |
Bore x stroke
|
71.0 x 64.0 mm (2.8 x 2.5 inches) |
Valves per cylinder
|
2 |
Fuel system
|
Carburettor. 2 x 36 mm Keihin CV |
Fuel control
|
Single Overhead Cams (SOHC) |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Fuel consumption
|
7.50 litres/100 km (13.3 km/l or 31.36 mpg) |
Greenhouse gases
|
174.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
Chassis, suspension, brakes and wheels |
Frame type
|
Tubular steel cradle |
Front suspension
|
Air adjustable telescopic forks |
Rear suspension
|
Pro-link air adjustable |
Front tire
|
130/70-18 |
Rear tire
|
160/80-16 |
Front brakes
|
Double disc. Two-piston calipers. |
Diameter
|
296 mm (11.7 inches) |
Rear brakes
|
Single disc. Two-piston calipers. |
Diameter
|
316 mm (12.4 inches) |
Physical measures and capacities |
Dry weight
|
366.0 kg (806.9 pounds) |
Weight incl. oil, gas, etc
|
394.0 kg (868.6 pounds) |
Power/weight ratio
|
0.2732 HP/kg |
Seat height
|
765 mm (30.1 inches) If adjustable, lowest setting. |
Fuel capacity
|
23.00 litres (6.08 US gallons) |
Oil capacity
|
3.70 litres (3.91 US quarts) |
Other specifications |
Color options
|
Pearl Bermuda Green, Pearl Atlantis Blue, Candy Spectra Red, Pearl Glacier White |
Starter
|
Electric |
Comments
|
Honda Gold Wing 1500 Special Edition. |
Update specs | Report missing specs or required updates. |
Maintenance and service specs * |
Engine oil
|
SAE 10W-40 |
Oil filter
|
HiFloFiltro Black - HF303 |
Brake fluid
|
DOT 4 |
Coolant
|
4.00 litres (1.06 US gallons) |
Battery
|
Y50-N18L-A3 |
Spark plugs
|
NGK DPR7EA-9, NGK DPR7EIX-9 |
Idle speed
|
800 +/- 100 RPM |
Tire pressure front
|
33 PSI (2.3 Bar or 225 kPa) |
Tire pressure rear
|
36 PSI (2.5 Bar or 250 kPa) |
Fork tube size
|
41 mm (1.6 inches) |
*) Always verify maintenance and service data with the bike owner's manual. |
