General information |
|
Model
|

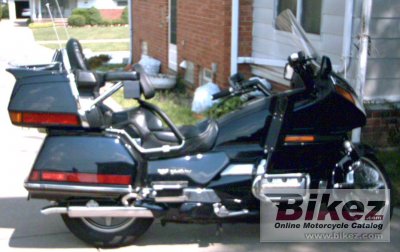

Honda GL 1500 Gold Wing SE |
|
Year of manufacture
|
1997 |
|
Type
|
Touring |
|
Rating
|
3.4 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
1520.0 ccm (92.75 cubic inches) |
|
Type of engine
|
Six cylinder boxer, four-stroke |
|
Output
|
100.0 HP (73.0 kW)) |
|
Torque
|
153.0 Nm (15.6 kgf-m or 112.9 ft.lbs) |
|
Top speed
|
190.0 km/h (118.1 mph) |
|
Compression
|
9.8:1 |
|
Bore x stroke
|
71.0 x 64.0 mm (2.8 x 2.5 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. 2 x 36 mm Keihin CV |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Fuel consumption
|
7.50 litres/100 km (13.3 km/l or 31.36 mpg) |
|
Greenhouse gases
|
174.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel cradle |
|
Front suspension
|
Air adjustable telescopic forks |
|
Rear suspension
|
Pro-link air adjustable |
|
Front tire
|
130/70-18 |
|
Rear tire
|
160/80-16 |
|
Front brakes
|
Double disc. Two-piston calipers. |
|
Diameter
|
296 mm (11.7 inches) |
|
Rear brakes
|
Single disc. Two-piston calipers. |
|
Diameter
|
316 mm (12.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
372.0 kg (820.1 pounds) |
|
Weight incl. oil, gas, etc
|
394.0 kg (868.6 pounds) |
|
Power/weight ratio
|
0.2688 HP/kg |
|
Seat height
|
765 mm (30.1 inches) If adjustable, lowest setting. |
|
Fuel capacity
|
23.00 litres (6.08 US gallons) |
|
Oil capacity
|
3.70 litres (3.91 US quarts) |
|
Other specifications |
|
Color options
|
Red, white, silver, black |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 10W-40 |
|
Brake fluid
|
DOT 4 |
|
Coolant
|
4.00 litres (1.06 US gallons) |
|
Spark plugs
|
NGK DPR7EA-9, NGK DPR7EIX-9 |
|
Idle speed
|
800 +/- 100 RPM |
|
Tire pressure front
|
33 PSI (2.3 Bar or 225 kPa) |
|
Tire pressure rear
|
36 PSI (2.5 Bar or 250 kPa) |
|
Fork tube size
|
41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
