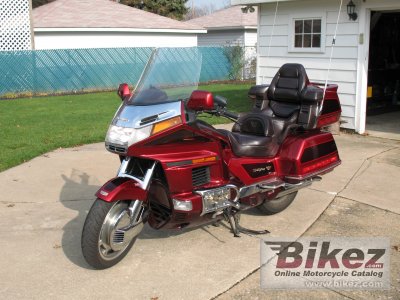

Honda GL 1500 Gold Wing SE 19961996 Honda GL 1500 Gold Wing SE specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Honda GL 1500 Gold Wing SE |
| Year | 1996 |
| Category | Touring |
| Rating | 3.5 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Displacement | 1520.0 ccm (92.75 cubic inches) |
| Engine type | Six cylinder boxer, four-stroke |
| Power | 100.0 HP (73.0 kW)) @ 5200 RPM |
| Torque | 150.0 Nm (15.3 kgf-m or 110.6 ft.lbs) @ 4000 RPM |
| Top speed | 193.0 km/h (119.9 mph) |
| Compression | 9.8:1 |
| Bore x stroke | 71.0 x 64.0 mm (2.8 x 2.5 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. 2 x 36 mm Keihin CV |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Fuel consumption | 7.50 litres/100 km (13.3 km/l or 31.36 mpg) |
| Greenhouse gases | 174.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel cradle |
| Front suspension | Air adjustable telescopic forks |
| Rear suspension | Pro-link air adjustable |
| Front tire | 130/70-18 |
| Rear tire | 160/80-16 |
| Front brakes | Double disc. Two-piston calipers. |
| Diameter | 296 mm (11.7 inches) |
| Rear brakes | Single disc. Two-piston calipers. |
| Diameter | 316 mm (12.4 inches) |
| Physical measures and capacities | |
| Dry weight | 372.0 kg (820.1 pounds) |
| Weight incl. oil, gas, etc | 394.0 kg (868.6 pounds) |
| Power/weight ratio | 0.2688 HP/kg |
| Seat height | 765 mm (30.1 inches) If adjustable, lowest setting. |
| Overall height | 1495 mm (58.9 inches) |
| Overall length | 2615 mm (103.0 inches) |
| Overall width | 955 mm (37.6 inches) |
| Ground clearance | 115 mm (4.5 inches) |
| Wheelbase | 1690 mm (66.5 inches) |
| Fuel capacity | 23.00 litres (6.08 US gallons) |
| Oil capacity | 3.70 litres (3.91 US quarts) |
| Other specifications | |
| Color options | Red, green |
| Starter | Electric |
| Comments | Electric reverse |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | SAE 10W-40 |
| Oil filter | Fram PH6017A |
| Brake fluid | DOT 4 |
| Coolant | 4.00 litres (1.06 US gallons) |
| Battery | Y50-N18L-A3 |
| Spark plugs | NGK DPR7EA-9, NGK DPR7EIX-9 |
| Idle speed | 800 +/- 100 RPM |
| Tire pressure front | 33 PSI (2.3 Bar or 225 kPa) |
| Tire pressure rear | 36 PSI (2.5 Bar or 250 kPa) |
| Fork tube size | 41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 96 Honda GL 1500 Gold Wing SE discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this Honda. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 1996 Honda GL 1500 Gold Wing SE for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this Honda bike | |
Reliability for the 1996 Honda GL 1500 Gold Wing SE:  (86.6 out of 100)Click here for complete rating. |
|
