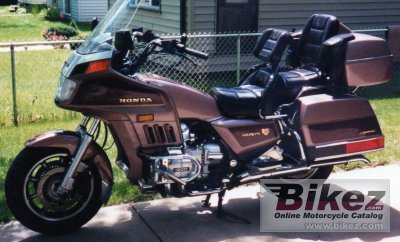

Honda GL 1200 DX Gold Wing 19861986 Honda GL 1200 DX Gold Wing specifications, pictures, reviews and rating |
General information | |
---|---|
Model | Honda GL 1200 DX Gold Wing |
Year of manufacture | 1986 |
Type | Sport touring |
Rating | 3.5 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
Engine and transmission | |
Engine size | 1181.0 ccm (72.06 cubic inches) |
Type of engine | Four cylinder boxer, four-stroke |
Output | 94.0 HP (68.6 kW)) @ 7000 RPM |
Torque | 62.0 Nm (6.3 kgf-m or 45.7 ft.lbs) @ 7250 RPM |
Top speed | 240.0 km/h (149.1 mph) |
Compression | 9.0:1 |
Bore x stroke | 75.5 x 66.0 mm (3.0 x 2.6 inches) |
Valves per cylinder | 2 |
Fuel system | Carburettor. Keihin |
Fuel control | Overhead Cams (OHC) |
Cooling system | Liquid |
Gearbox | 5-speed |
Transmission type | Shaft drive (cardan) (final drive) |
Fuel consumption | 5.70 litres/100 km (17.5 km/l or 41.27 mpg) |
Greenhouse gases | 132.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
Chassis, suspension, brakes and wheels | |
Rake (fork angle) | 30.0° |
Trail | 120 mm (4.7 inches) |
Front suspension | Telescopic fork |
Front wheel travel | 140 mm (5.5 inches) |
Rear suspension | Dual shocks, adjustable |
Rear wheel travel | 100 mm (3.9 inches) |
Front tire | 130/90-16 |
Rear tire | 150/90-15 |
Front brakes | Double disc. 2-piston caliper |
Diameter | 276 mm (10.9 inches) |
Rear brakes | Single disc. 2-piston caliper |
Diameter | 296 mm (11.7 inches) |
Physical measures and capacities | |
Weight incl. oil, gas, etc | 333.0 kg (734.1 pounds) |
Seat height | 780 mm (30.7 inches) If adjustable, lowest setting. |
Overall length | 2355 mm (92.7 inches) |
Wheelbase | 1610 mm (63.4 inches) |
Fuel capacity | 22.00 litres (5.81 US gallons) |
Other specifications | |
Starter | Electric |
Update specs | Report missing specs or required updates. |
