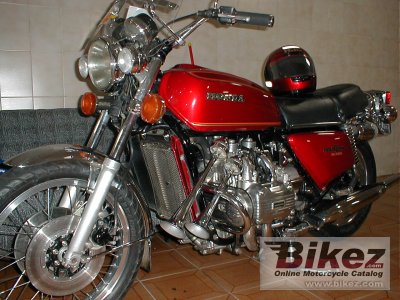

Honda GL 1000 Gold Wing 19761976 Honda GL 1000 Gold Wing specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Honda GL 1000 Gold Wing |
| Model year | 1976 |
| Category | Classic |
| Rating | 3.6 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 999.0 ccm (60.96 cubic inches) |
| Engine type | Four cylinder boxer, four-stroke |
| Power output | 82.0 HP (59.9 kW)) @ 7500 RPM |
| Torque | 83.0 Nm (8.5 kgf-m or 61.2 ft.lbs) |
| Top speed | 196.0 km/h (121.8 mph) |
| Compression | 9.2:1 |
| Bore x stroke | 72.0 x 61.4 mm (2.8 x 2.4 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. 4 x 32mm Keihin |
| Fuel control | Overhead Cams (OHC) |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Fuel consumption | 5.10 litres/100 km (19.6 km/l or 46.12 mpg) |
| Greenhouse gases | 118.3 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 140 mm (5.5 inches) |
| Rear suspension | Swing arm, twin shocks |
| Rear wheel travel | 105 mm (4.1 inches) |
| Front tire | 3.50-19 |
| Rear tire | 4.50-17 |
| Front brakes | Double disc. Two-piston calipers. |
| Diameter | 232 mm (9.1 inches) |
| Rear brakes | Single disc. Single-piston caliper. |
| Diameter | 250 mm (9.8 inches) |
| Physical measures and capacities | |
| Dry weight | 273.0 kg (601.9 pounds) |
| Weight incl. oil, gas, etc | 295.0 kg (650.4 pounds) |
| Power/weight ratio | 0.3004 HP/kg |
| Seat height | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Overall height | 1525 mm (60.0 inches) |
| Overall length | 2630 mm (103.5 inches) |
| Overall width | 955 mm (37.6 inches) |
| Wheelbase | 1545 mm (60.8 inches) |
| Fuel capacity | 19.00 litres (5.02 US gallons) |
| Other specifications | |
| Starter | Electric |
