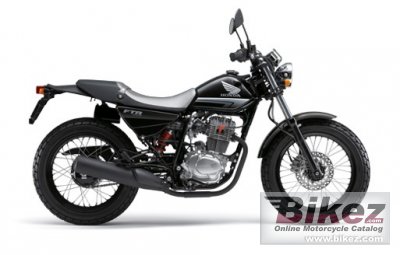

Honda FTR 20132013 Honda FTR specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Honda FTR |
| Year model | 2013 |
| Type | Allround |
| Rating | 3.5 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 223.0 ccm (13.61 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 21.5 HP (15.7 kW)) @ 7500 RPM |
| Torque | 18.0 Nm (1.8 kgf-m or 13.3 ft.lbs) @ 5500 RPM |
| Compression | 9.0:1 |
| Bore x stroke | 65.5 x 66.2 mm (2.6 x 2.6 inches) |
| Fuel system | Carburettor. VE3DC |
| Fuel control | Overhead Cams (OHC) |
| Ignition | CDI |
| Lubrication system | Pumping spray |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiplate |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double cradle |
| Rake (fork angle) | 25.0° |
| Trail | 84 mm (3.3 inches) |
| Front suspension | Telescopic fork |
| Rear suspension | Swing arm |
| Front tire | 120/90-18 |
| Rear tire | 120/90-18 |
| Front brakes | Single disc. Hydraulic |
| Rear brakes | Expanding brake (drum brake) |
| Seat | Two person seat |
| Physical measures and capacities | |
| Dry weight | 119.0 kg (262.4 pounds) |
| Weight incl. oil, gas, etc | 128.0 kg (282.2 pounds) |
| Power/weight ratio | 0.1803 HP/kg |
| Seat height | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Overall height | 1150 mm (45.3 inches) |
| Overall length | 2080 mm (81.9 inches) |
| Overall width | 919 mm (36.2 inches) |
| Ground clearance | 175 mm (6.9 inches) |
| Wheelbase | 1395 mm (54.9 inches) |
| Fuel capacity | 7.20 litres (1.90 US gallons) |
| Other specifications | |
| Color options | Black, light blue, yellow, red/white/blue |
| Starter | Electric |
| Comments | Sold in the Asian market |
