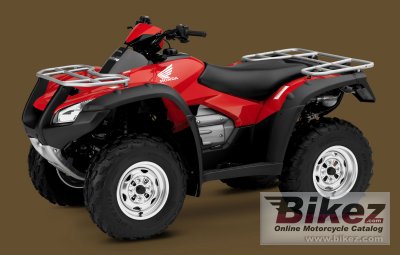

Honda FourTrax Rincon GPScape 20092009 Honda FourTrax Rincon GPScape specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| Is it possible to make the ultimate utility ATV even more capable? Add revolutionary GPScape, Honda´s hard-wired, satellite-based navigation system, to the FourTrax Rincon and you´ve got it all—a great way to go places, and a reliable, intuitive way to find your way back. |
| General information | |
|---|---|
| Model | Honda FourTrax Rincon GPScape |
| Model year | 2009 |
| Category | Sport |
| Price as new | US$ 8199. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 675.0 ccm (41.19 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Bore x stroke | 102.0 x 82.6 mm (4.0 x 3.3 inches) |
| Fuel system | Injection. Electronic fuel injection: 40mm throttle bodies |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Full-Transistorized type with electronic advance |
| Cooling system | Liquid |
| Gearbox | 3-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Automatic |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double-wishbone |
| Front wheel travel | 175 mm (6.9 inches) |
| Rear suspension | Independent double-wishbone |
| Rear wheel travel | 203 mm (8.0 inches) |
| Front tire | 25/10-12 |
| Rear tire | 25/10-12 |
| Front brakes | Double disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 293.9 kg (648.0 pounds) |
| Seat height | 876 mm (34.5 inches) If adjustable, lowest setting. |
| Overall length | 2113 mm (83.2 inches) |
| Overall width | 1189 mm (46.8 inches) |
| Ground clearance | 254 mm (10.0 inches) |
| Wheelbase | 1290 mm (50.8 inches) |
| Fuel capacity | 16.27 litres (4.30 US gallons) |
| Reserve fuel capacity | 4.54 litres (1.20 US gallons) |
| Other specifications | |
| Color options | Red, Camo |
| Starter | Electric |
| Comments | Model ID: TRX680FGA |
