General information |
|
Model
|

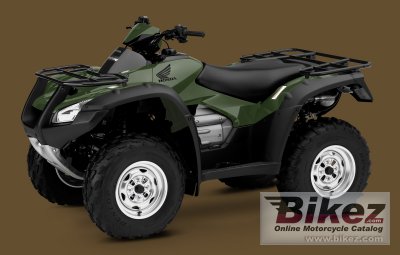

Honda FourTrax Rincon |
|
Year
|
2013 |
|
Category
|
ATV |
| Price as new | US$ 9199. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
675.0 ccm (41.19 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Bore x stroke
|
102.0 x 82.6 mm (4.0 x 3.3 inches) |
|
Fuel system
|
Injection. Electronic fuel injection (PGM-FI), 40mm throttle bodies |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Full-transistorized type with electronic advance |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
3-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Driveline
|
Direct front and rear driveshafts with TraxLok® and torque-sensitive front differential |
|
Emission details
|
Meets current California Air Resources Board (CARB) off-road emissions standards. |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent double-wishbone |
|
Front wheel travel
|
175 mm (6.9 inches) |
|
Rear suspension
|
Independent double-wishbone |
|
Rear wheel travel
|
203 mm (8.0 inches) |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Double disc. Hydraulic. |
|
Diameter
|
180 mm (7.1 inches) |
|
Rear brakes
|
Single disc. Hydraulic. |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
293.9 kg (648.0 pounds) |
|
Seat height
|
874 mm (34.4 inches) If adjustable, lowest setting. |
|
Overall height
|
1207 mm (47.5 inches) |
|
Overall length
|
2113 mm (83.2 inches) |
|
Overall width
|
1189 mm (46.8 inches) |
|
Ground clearance
|
234 mm (9.2 inches) |
|
Wheelbase
|
1290 mm (50.8 inches) |
|
Fuel capacity
|
16.65 litres (4.40 US gallons) |
|
Other specifications |
|
Color options
|
Red, Olive, NaturalGear and trade, Camo |
|
Starter
|
Electric |
|
Factory warranty
|
One year. Unlimited milage. Transferable. |
|
Comments
|
Model ID: TRX680FA |
