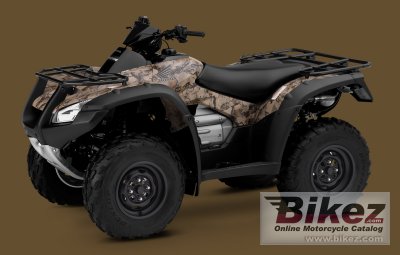

Honda FourTrax Rincon 20122012 Honda FourTrax Rincon specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| Our 700cc-class FourTrax® Rincon® is about more than just farms and ranches and construction sites. Think of it as a top-end Sport Utility machine, an ATV that delivers smooth, powerful, class-leading performance no matter what the occasion: hunting, trail blazing, or simply exploring. |
| General information | |
|---|---|
| Motorcycle name | Honda FourTrax Rincon |
| Model year | 2012 |
| Category | ATV |
| Price as new | US$ 8999. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.0 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 675.0 ccm (41.19 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 12.0:1 |
| Bore x stroke | 102.0 x 82.6 mm (4.0 x 3.3 inches) |
| Fuel system | Injection. Electronic fuel injection (PGM-FI), 40mm throttle bodies |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Full-transistorized type with electronic advance |
| Lubrication system | Dry sump |
| Cooling system | Liquid |
| Gearbox | 3-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Automatic |
| Driveline | Direct front and rear driveshafts with TraxLok® and torque-sensitive front differential |
| Emission details | Meets current California Air Resources Board (CARB) off-road emissions standards. |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double-wishbone |
| Front wheel travel | 175 mm (6.9 inches) |
| Rear suspension | Independent double-wishbone |
| Rear wheel travel | 203 mm (8.0 inches) |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Double disc |
| Diameter | 180 mm (7.1 inches) |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 293.9 kg (648.0 pounds) |
| Overall height | 1207 mm (47.5 inches) |
| Overall length | 2113 mm (83.2 inches) |
| Overall width | 1189 mm (46.8 inches) |
| Ground clearance | 254 mm (10.0 inches) |
| Wheelbase | 1290 mm (50.8 inches) |
| Fuel capacity | 16.28 litres (4.30 US gallons) |
| Reserve fuel capacity | 4.54 litres (1.20 US gallons) |
| Other specifications | |
| Color options | Red, Olive, NaturalGear™, Camo |
| Starter | Electric |
| Factory warranty | One year. Unlimited milage. Transferable. |
| Comments | Model ID: TRX680FA |
