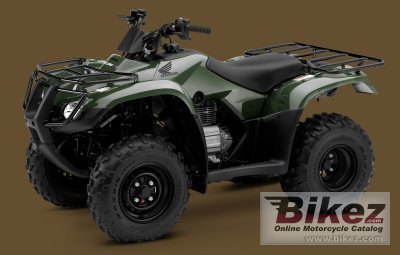

Honda FourTrax Recon ES 20122012 Honda FourTrax Recon ES specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| You don´t need a sledgehammer to hang a picture, and that same philosophy applies to ATVs. So we built the Recon, a powerful ATV with a smaller footprint. Equipped with a 250cc-class engine, this 2WD workhorse delivers seamless, reliable power right when you need it. |
| General information | |
|---|---|
| Model | Honda FourTrax Recon ES |
| Year of manufacture | 2012 |
| Type | ATV |
| Price as new | US$ 3899. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 229.0 ccm (13.97 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 9.5:1 |
| Bore x stroke | 68.5 x 62.2 mm (2.7 x 2.4 inches) |
| Fuel system | Carburettor. 22mm carburetor |
| Fuel control | Overhead Valves (OHV) |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Automatic |
| Driveline | Direct rear driveshaft. 2WD. ESP 5-speed with reverse |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double-wishbone |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Swingarm with single shock |
| Rear wheel travel | 124 mm (4.9 inches) |
| Front tire | 22/7-11 |
| Rear tire | 22/10-9 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 196.0 kg (432.0 pounds) |
| Seat height | 792 mm (31.2 inches) If adjustable, lowest setting. |
| Overall length | 1905 mm (75.0 inches) |
| Overall width | 1034 mm (40.7 inches) |
| Ground clearance | 152 mm (6.0 inches) |
| Wheelbase | 1130 mm (44.5 inches) |
| Fuel capacity | 9.08 litres (2.40 US gallons) |
| Reserve fuel capacity | 2.27 litres (0.60 US gallons) |
| Other specifications | |
| Color options | Red, Olive |
| Starter | Electric |
| Factory warranty | 1 year |
| Comments | Model ID: TRX250TE |
