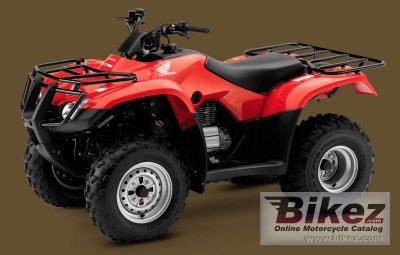

Honda FourTrax Recon 20132013 Honda FourTrax Recon specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| These days, you have to look hard at every dollar you spend. But there’s a difference between being just being cheap and smart with your money. And smart riders know that when it comes to value, Honda’s Recon is a great investment. Sure, it has an attractive price. But it also offers something nobody else can: Honda quality. |
| General information | |
|---|---|
| Model name | Honda FourTrax Recon |
| Year | 2013 |
| Category | ATV |
| Price as new | US$ 3949. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 229.0 ccm (13.97 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Bore x stroke | 68.5 x 62.2 mm (2.7 x 2.4 inches) |
| Fuel system | Carburettor. 22mm carburetor |
| Fuel control | Overhead Valves (OHV) |
| Ignition | CD with electronic advance |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Automatic |
| Driveline | Direct rear driveshaft |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double-wishbone |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Swingarm with single shock |
| Rear wheel travel | 124 mm (4.9 inches) |
| Front tire | 22/7-11 |
| Rear tire | 22/10-9 |
| Front brakes | Double disc. Hydraulic. |
| Diameter | 229 mm (9.0 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 229 mm (9.0 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 196.0 kg (432.0 pounds) |
| Seat height | 792 mm (31.2 inches) If adjustable, lowest setting. |
| Overall height | 1069 mm (42.1 inches) |
| Overall length | 1905 mm (75.0 inches) |
| Overall width | 1034 mm (40.7 inches) |
| Ground clearance | 152 mm (6.0 inches) |
| Wheelbase | 1130 mm (44.5 inches) |
| Fuel capacity | 9.08 litres (2.40 US gallons) |
| Other specifications | |
| Color options | Red, Olive |
| Starter | Electric |
| Factory warranty | 1 year |
| Comments | Model ID: TRX250TM |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 13 Honda FourTrax Recon discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
