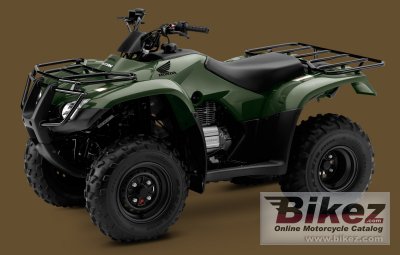

2012 Honda FourTrax Recon

Honda FourTrax Recon 2012


2012 Honda FourTrax Recon specifications, pictures, reviews and rating

Honda's profilation of this bike
You don´t need a sledgehammer to hang a picture, and that same philosophy applies to ATVs. So we built the Recon, a powerful ATV with a smaller footprint. Equipped with a 250cc-class engine, this 2WD workhorse delivers seamless, reliable power right when you need it.

General information
Motorcycle name Honda FourTrax Recon
Year 2012
Category ATV
Price as newUS$ 3899. MSRP depends on country, taxes, accessories, etc.
Rating Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating.
Engine and transmission
Displacement 229.0 ccm (13.97 cubic inches)
Engine type Single cylinder, four-stroke
Compression 9.5:1
Bore x stroke 68.5 x 62.2 mm (2.7 x 2.4 inches)
Fuel system Carburettor. 22mm carburetor
Fuel control Overhead Valves (OHV)
Ignition CD with electronic advance
Lubrication system Wet sump
Cooling system Air
Gearbox 5-speed
Transmission type Shaft drive (cardan) (final drive)
Clutch Automatic
Driveline Direct rear driveshaft. 2WD.
Chassis, suspension, brakes and wheels
Front suspension Independent double-wishbone
Front wheel travel 130 mm (5.1 inches)
Rear suspension Swingarm with single shock
Rear wheel travel 124 mm (4.9 inches)
Front tire 22/7-11
Rear tire 22/10-9
Front brakes Double disc
Rear brakes Expanding brake (drum brake)
Physical measures and capacities
Weight incl. oil, gas, etc 196.0 kg (432.0 pounds)
Seat height 792 mm (31.2 inches) If adjustable, lowest setting.
Overall height 1069 mm (42.1 inches)
Overall length 1905 mm (75.0 inches)
Overall width 1034 mm (40.7 inches)
Ground clearance 152 mm (6.0 inches)
Wheelbase 1130 mm (44.5 inches)
Fuel capacity 9.08 litres (2.40 US gallons)
Other specifications
Color options Red, Olive
Starter Electric
Factory warranty 1 year
Comments Model ID: TRX250TM
