General information |
|
Model
|

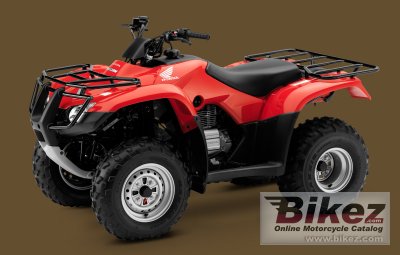

Honda FourTrax Recon |
|
Year of manufacture
|
2011 |
|
Type
|
ATV |
| Price as new | US$ 3899. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
229.0 ccm (13.97 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
8.5:1 |
|
Bore x stroke
|
68.5 x 62.2 mm (2.7 x 2.4 inches) |
|
Fuel system
|
Carburettor. 22mm carburetor |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
CD with electronic advance |
|
Lubrication system
|
Wet-sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Automatic |
|
Driveline
|
Direct rear driveshaft |
|
Emission details
|
Meets current EPA and CARB emissions levels. |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent double-wishbone |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Swingarm with single shock |
|
Rear wheel travel
|
124 mm (4.9 inches) |
|
Front tire
|
22/7-11 |
|
Rear tire
|
22/10-9 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
199.1 kg (439.0 pounds) |
|
Seat height
|
792 mm (31.2 inches) If adjustable, lowest setting. |
|
Overall height
|
1069 mm (42.1 inches) |
|
Overall length
|
1905 mm (75.0 inches) |
|
Overall width
|
1034 mm (40.7 inches) |
|
Ground clearance
|
152 mm (6.0 inches) |
|
Wheelbase
|
1130 mm (44.5 inches) |
|
Fuel capacity
|
9.08 litres (2.40 US gallons) |
|
Other specifications |
|
Color options
|
Red, Olive |
|
Starter
|
Electric |
|
Factory warranty
|
1 year. Transferable, unlimited-mileage limited warranty |
|
Comments
|
Model ID: TRX250TM. Optional electric shifting (ES) |
