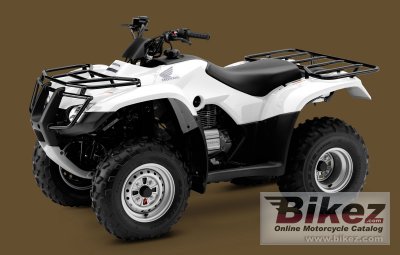

2010 Honda FourTrax Recon

Honda FourTrax Recon 2010


2010 Honda FourTrax Recon specifications, pictures, reviews and rating

Honda's profilation of this bike
At Honda, we know bigger isn´t always better—especially when it comes to maneuvering up a tight trail, loading up after a long weekend, or filling up at the pump. That´s why we built the uniquely right-sized Honda Recon, an ATV that´s big on performance, durability and fun, but with a smaller engine and a more compact footprint that lets it maneuver down trails and get into and out of tight spots that some bigger ATVs might find hard to manage.

General information
Model name Honda FourTrax Recon
Model year 2010
Category ATV
Price as newUS$ 3899. MSRP depends on country, taxes, accessories, etc.
Rating Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating.
Engine and transmission
Displacement 229.0 ccm (13.97 cubic inches)
Engine type Single cylinder, four-stroke
Compression 8.5:1
Bore x stroke 68.5 x 62.2 mm (2.7 x 2.4 inches)
Fuel system Carburettor. 22mm carburetor
Fuel control Overhead Valves (OHV)
Ignition CD with electronic advance
Cooling system Air
Gearbox 5-speed
Clutch Automatic
Chassis, suspension, brakes and wheels
Front suspension Independent double-wishbone
Front wheel travel 130 mm (5.1 inches)
Rear suspension Swingarm with single shock
Rear wheel travel 124 mm (4.9 inches)
Front tire 22/8-11
Rear tire 22/10-11
Front brakes Double disc
Rear brakes Expanding brake (drum brake)
Physical measures and capacities
Weight incl. oil, gas, etc 199.1 kg (439.0 pounds)
Seat height 792 mm (31.2 inches) If adjustable, lowest setting.
Overall height 1069 mm (42.1 inches)
Overall length 1905 mm (75.0 inches)
Overall width 1034 mm (40.7 inches)
Ground clearance 152 mm (6.0 inches)
Wheelbase 1130 mm (44.5 inches)
Fuel capacity 9.08 litres (2.40 US gallons)
Other specifications
Color options White, Red, Olive
Starter Electric
Comments Model ID: TRX250TM
