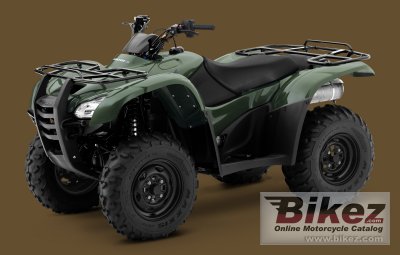

Honda FourTrax Rancher ES 20122012 Honda FourTrax Rancher ES specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| You´re getting one of the toughest, smartest and hardest working ATVs on the planet. After all, they do bear the name: Honda. |
| General information | |
|---|---|
| Model | Honda FourTrax Rancher ES |
| Model year | 2012 |
| Category | ATV |
| Price as new | US$ 5299. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 420.0 ccm (25.63 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 9.5:1 |
| Bore x stroke | 86.5 x 71.5 mm (3.4 x 2.8 inches) |
| Fuel system | Injection. Keihin 34mm throttle-body fuel-injection system |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Full-transistorized type with electronic advance |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Automatic |
| Driveline | Direct rear driveshaft |
| Emission details | Meets current California Air Resources Board (CARB) and EPA off-road emissions standards. |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double-wishbone |
| Front wheel travel | 160 mm (6.3 inches) |
| Rear suspension | Swingarm with single shock |
| Rear wheel travel | 160 mm (6.3 inches) |
| Front tire | 24/8-12 |
| Rear tire | 24/10-11 |
| Front brakes | Double disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 248.1 kg (547.0 pounds) |
| Seat height | 823 mm (32.4 inches) If adjustable, lowest setting. |
| Overall height | 1146 mm (45.1 inches) |
| Overall length | 2055 mm (80.9 inches) |
| Overall width | 1171 mm (46.1 inches) |
| Ground clearance | 165 mm (6.5 inches) |
| Wheelbase | 1250 mm (49.2 inches) |
| Fuel capacity | 13.25 litres (3.50 US gallons) |
| Reserve fuel capacity | 3.79 litres (1.00 US gallons) |
| Other specifications | |
| Color options | Red, Olive |
| Starter | Electric & kick |
| Factory warranty | Transferable limited warranty; extended coverage available with a Honda Protection Plan. |
| Comments | Honda´s Electric Shift Program (ESP) technology. Turning Radius 8.9 feet. Model ID: TRX420TE. |
| Update specs | Report missing specs or required updates. |
