Honda FourTrax Rancher AT 20112011 Honda FourTrax Rancher AT specifications, pictures, reviews and rating |

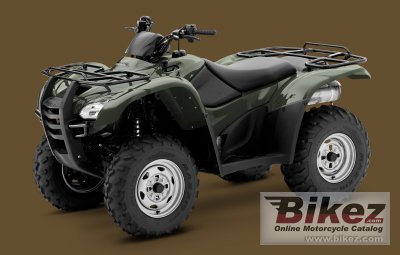

 2011 Honda FourTrax Rancher AT. Picture credits - Honda. Submit more pictures.
|
| General information | |
|---|---|
| Motorcycle name | Honda FourTrax Rancher AT |
| Year of manufacture | 2011 |
| Type | ATV |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 420.0 ccm (25.63 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 8.5:1 |
| Bore x stroke | 86.5 x 71.5 mm (3.4 x 2.8 inches) |
| Fuel system | Injection. Keihin 34mm throttle body fuel-injection system |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Full-transistorized type with electronic advance |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Clutch | Automatic |
| Driveline | Switchable 2wd/4wd |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double-wishbone |
| Front wheel travel | 160 mm (6.3 inches) |
| Rear suspension | Independent double-wishbone |
| Rear wheel travel | 160 mm (6.3 inches) |
| Front tire | 24/8-12 |
| Rear tire | 24/10-11 |
| Front brakes | Double disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 271.0 kg (597.5 pounds) |
| Weight incl. oil, gas, etc | 282.6 kg (623.0 pounds) |
| Seat height | 823 mm (32.4 inches) If adjustable, lowest setting. |
| Overall length | 2055 mm (80.9 inches) |
| Overall width | 1171 mm (46.1 inches) |
| Ground clearance | 231 mm (9.1 inches) |
| Wheelbase | 1255 mm (49.4 inches) |
| Fuel capacity | 13.62 litres (3.60 US gallons) |
| Other specifications | |
| Color options | Red, Olive, Camo |
| Comments | Model ID: TRX420FA. Fully automatic or shifting via the push-button Electric Shift Program. |
