General information |
|
Model name
|

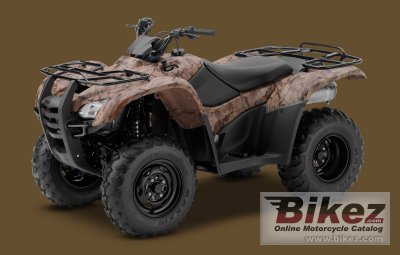

Honda FourTrax Rancher 4x4 |
|
Year model
|
2012 |
|
Type
|
ATV |
| Price as new | US$ 6099. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
420.0 ccm (25.63 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
9.5:1 |
|
Bore x stroke
|
86.5 x 71.5 mm (3.4 x 2.8 inches) |
|
Fuel system
|
Injection. Keihin 34mm throttle-body fuel-injection system |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Full-transistorized type with electronic advance |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Automatic |
|
Driveline
|
TraxLok 2WD/4WD. |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent double-wishbone |
|
Front wheel travel
|
160 mm (6.3 inches) |
|
Rear suspension
|
Swingarm with single shock |
|
Rear wheel travel
|
160 mm (6.3 inches) |
|
Front tire
|
24/8-12 |
|
Rear tire
|
24/10-11 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
248.1 kg (547.0 pounds) |
|
Seat height
|
823 mm (32.4 inches) If adjustable, lowest setting. |
|
Overall height
|
1146 mm (45.1 inches) |
|
Overall length
|
2055 mm (80.9 inches) |
|
Ground clearance
|
165 mm (6.5 inches) |
|
Wheelbase
|
1250 mm (49.2 inches) |
|
Fuel capacity
|
13.25 litres (3.50 US gallons) |
|
Reserve fuel capacity
|
3.79 litres (1.00 US gallons) |
|
Other specifications |
|
Color options
|
Red, Olive |
|
Starter
|
Electric & kick |
|
Factory warranty
|
Transferable limited warranty; extended coverage available with a Honda Protection Plan. |
|
Comments
|
Turning Radius 8.9 feet. Optional power steering. Model ID: TRX420TE. |
