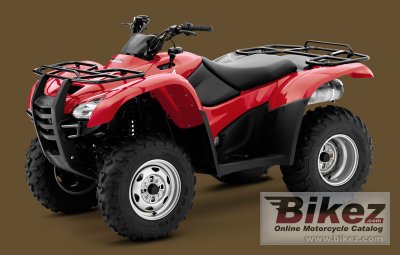

Honda FourTrax Rancher 4x4 20092009 Honda FourTrax Rancher 4x4 specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| This is the real workhorse of our Rancher lineup—our base model equipped with four-wheel drive. Like all our 4WD units it offers a torque-sensing front differential for easier steering and TraxLok®, our shift-on-the-fly two-wheel-drive/four-wheel-drive system. |
| General information | |
|---|---|
| Model name | Honda FourTrax Rancher 4x4 |
| Model year | 2009 |
| Category | Sport |
| Price as new | US$ 4599. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 420.0 ccm (25.63 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Bore x stroke | 86.5 x 71.5 mm (3.4 x 2.8 inches) |
| Fuel system | Injection. Keihin 34mm throttle-body fuel-injection system |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Full transistor with electronic advance |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Automatic |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double-wishbone |
| Front wheel travel | 160 mm (6.3 inches) |
| Rear suspension | Swingarm with single shock |
| Rear wheel travel | 160 mm (6.3 inches) |
| Front tire | 24/10-12 |
| Rear tire | 24/10-11 |
| Front brakes | Double disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 264.9 kg (584.0 pounds) |
| Seat height | 823 mm (32.4 inches) If adjustable, lowest setting. |
| Overall length | 2055 mm (80.9 inches) |
| Ground clearance | 165 mm (6.5 inches) |
| Wheelbase | 1250 mm (49.2 inches) |
| Fuel capacity | 13.62 litres (3.60 US gallons) |
| Other specifications | |
| Color options | White, Olive, Red, Camo |
| Starter | Electric |
| Comments | Model ID: TRX420FM |
