General information |
|
Motorcycle name
|

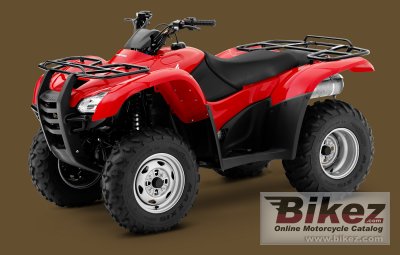

Honda FourTrax Rancher |
|
Year
|
2010 |
|
Category
|
ATV |
|
Rating
|
3.4 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
420.0 ccm (25.63 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
8.5:1 |
|
Bore x stroke
|
86.5 x 71.5 mm (3.4 x 2.8 inches) |
|
Fuel system
|
Injection. Keihin 34mm throttle-body fuel-injection system |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Full-transistorized type with electronic advance |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Clutch
|
Automatic |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent double-wishbone |
|
Front wheel travel
|
160 mm (6.3 inches) |
|
Rear suspension
|
Swingarm with single shock |
|
Rear wheel travel
|
160 mm (6.3 inches) |
|
Front tire
|
24/8-12 |
|
Rear tire
|
24/10-11 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
248.1 kg (547.0 pounds) |
|
Seat height
|
823 mm (32.4 inches) If adjustable, lowest setting. |
|
Overall height
|
1146 mm (45.1 inches) |
|
Overall length
|
2055 mm (80.9 inches) |
|
Overall width
|
1171 mm (46.1 inches) |
|
Ground clearance
|
165 mm (6.5 inches) |
|
Wheelbase
|
1250 mm (49.2 inches) |
|
Fuel capacity
|
13.24 litres (3.50 US gallons) |
|
Other specifications |
|
Color options
|
Red, Olive |
|
Starter
|
Electric |
|
Comments
|
Model ID: TRX420TM |
