General information |
|
Motorcycle name
|

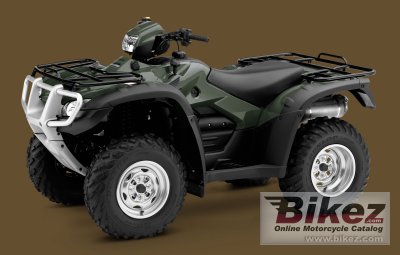

Honda FourTrax Foreman Rubicon GPScape |
|
Year of manufacture
|
2011 |
|
Type
|
ATV |
| Price as new | US$ 8349. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
499.0 ccm (30.45 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Bore x stroke
|
92.0 x 75.0 mm (3.6 x 3.0 inches) |
|
Fuel system
|
Carburettor. 36mm constant velocity carburator |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
CD with electronic advance |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Automatic |
|
Driveline
|
4WD |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent double-wishbone |
|
Front wheel travel
|
170 mm (6.7 inches) |
|
Rear suspension
|
Swingarm with dual shock absorbers |
|
Rear wheel travel
|
170 mm (6.7 inches) |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Single disc |
|
Diameter
|
180 mm (7.1 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
285.8 kg (630.0 pounds) |
|
Seat height
|
861 mm (33.9 inches) If adjustable, lowest setting. |
|
Overall length
|
2108 mm (83.0 inches) |
|
Overall width
|
1189 mm (46.8 inches) |
|
Ground clearance
|
191 mm (7.5 inches) |
|
Wheelbase
|
1285 mm (50.6 inches) |
|
Fuel capacity
|
15.14 litres (4.00 US gallons) |
|
Other specifications |
|
Color options
|
Red, Olive, Camo |
|
Starter
|
Electric |
|
Factory warranty
|
1 year. Transferable, unlimited mileage limited warranty |
|
Comments
|
Model ID: TRX500FPA |
