General information |
Motorcycle name
|

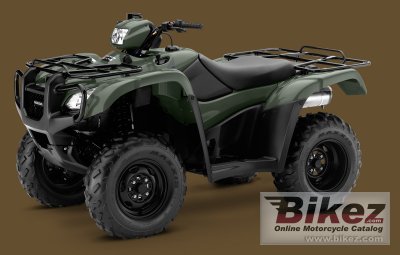

Honda FourTrax Foreman 4x4 |
Model year
|
2013 |
Category
|
ATV |
Price as new | US$ 6999. MSRP depends on country, taxes, accessories, etc. |
Rating
|
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
Engine and transmission |
Displacement
|
475.0 ccm (28.98 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Compression
|
9.5:1 |
Bore x stroke
|
92.0 x 71.5 mm (3.6 x 2.8 inches) |
Fuel system
|
Carburettor. Keihin® 36mm throttle body |
Fuel control
|
Overhead Valves (OHV) |
Ignition
|
Full-transistorized type with electronic advance |
Lubrication system
|
Dry sump |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Clutch
|
Automatic |
Driveline
|
Direct front and rear driveshafts with TraxLok® and torque-sensitive front differential |
Emission details
|
Meets current California Air Resources Board (CARB) and EPA off-road emissions standards. |
Chassis, suspension, brakes and wheels |
Front suspension
|
Independent double-wishbone |
Front wheel travel
|
170 mm (6.7 inches) |
Rear suspension
|
Swingarm with single shock |
Rear wheel travel
|
175 mm (6.9 inches) |
Front tire
|
25/8-12 |
Rear tire
|
25/10-12 |
Front brakes
|
Double disc. Hydraulic. |
Diameter
|
196 mm (7.7 inches) |
Rear brakes
|
Expanding brake (drum brake) |
Diameter
|
180 mm (7.1 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
284.0 kg (626.0 pounds) |
Seat height
|
881 mm (34.7 inches) If adjustable, lowest setting. |
Overall height
|
1196 mm (47.1 inches) |
Overall length
|
2126 mm (83.7 inches) |
Overall width
|
1204 mm (47.4 inches) |
Ground clearance
|
193 mm (7.6 inches) |
Wheelbase
|
1280 mm (50.4 inches) |
Fuel capacity
|
15.14 litres (4.00 US gallons) |
Other specifications |
Color options
|
Red, Olive, NaturalGear and trade, Camouflage |
Starter
|
Electric |
Factory warranty
|
One year. Unlimited milage. Transferable. |
Comments
|
Model ID: TRX500FM |
