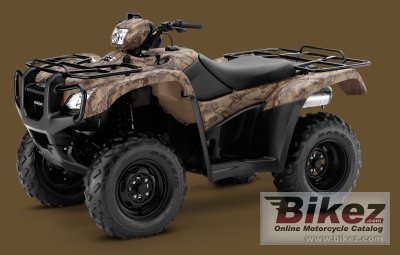

Honda FourTrax Foreman 4x4 20122012 Honda FourTrax Foreman 4x4 specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| Honda´s Foreman family of all-terrain vehicles have always been the machines to count on when you need an ATV that´s not afraid to take on the tough jobs. And this year they´re better than ever: Stronger, smarter, even harder working, whether it´s around the ranch, factory, or your favorite trail. |
| General information | |
|---|---|
| Model name | Honda FourTrax Foreman 4x4 |
| Year | 2012 |
| Category | ATV |
| Price as new | US$ 6899. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 475.0 ccm (28.98 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 9.5:1 |
| Bore x stroke | 92.0 x 71.5 mm (3.6 x 2.8 inches) |
| Fuel system | Carburettor. Keihin® 36mm throttle body |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Full-transistorized type with electronic advance |
| Lubrication system | Dry sump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Automatic |
| Driveline | Direct front and rear driveshafts with TraxLok® and torque-sensitive front differential |
| Emission details | Meets current California Air Resources Board (CARB) and EPA off-road emissions standards. |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double-wishbone |
| Front wheel travel | 170 mm (6.7 inches) |
| Rear suspension | Swingarm with single shock |
| Rear wheel travel | 175 mm (6.9 inches) |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Double disc |
| Diameter | 196 mm (7.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 180 mm (7.1 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 284.0 kg (626.0 pounds) |
| Seat height | 881 mm (34.7 inches) If adjustable, lowest setting. |
| Overall height | 1196 mm (47.1 inches) |
| Overall length | 2126 mm (83.7 inches) |
| Overall width | 1204 mm (47.4 inches) |
| Ground clearance | 193 mm (7.6 inches) |
| Wheelbase | 1280 mm (50.4 inches) |
| Fuel capacity | 15.14 litres (4.00 US gallons) |
| Reserve fuel capacity | 4.54 litres (1.20 US gallons) |
| Other specifications | |
| Color options | Red, Olive, NaturalGear, Camouflage |
| Starter | Electric |
| Factory warranty | One year. Unlimited milage. Transferable. |
| Comments | Model ID: TRX500FM |
