General information |
|
Model
|

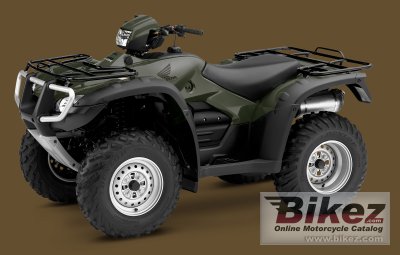

Honda FourTrax Foreman 4x4 |
|
Model year
|
2011 |
|
Category
|
ATV |
| Price as new | US$ 6799. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
475.0 ccm (28.98 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
8.5:1 |
|
Bore x stroke
|
92.0 x 71.5 mm (3.6 x 2.8 inches) |
|
Fuel system
|
Carburettor. 36mm constant velocity carburetor |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
CD with electronic advance |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Automatic |
|
Driveline
|
Direct front and rear driveshafts with Traxlok and torque-sensitive front differential |
|
Emission details
|
Meets current EPA and CARB off-road emissions standards. |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent double-wishbone |
|
Front wheel travel
|
170 mm (6.7 inches) |
|
Rear suspension
|
Swingarm with dual shocks |
|
Rear wheel travel
|
170 mm (6.7 inches) |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Double disc |
|
Diameter
|
180 mm (7.1 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
180 mm (7.1 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
281.2 kg (620.0 pounds) |
|
Seat height
|
861 mm (33.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1181 mm (46.5 inches) |
|
Overall length
|
2108 mm (83.0 inches) |
|
Overall width
|
1189 mm (46.8 inches) |
|
Ground clearance
|
191 mm (7.5 inches) |
|
Wheelbase
|
1288 mm (50.7 inches) |
|
Fuel capacity
|
15.52 litres (4.10 US gallons) |
|
Other specifications |
|
Color options
|
Red, Olive, Camo |
|
Starter
|
Electric |
|
Factory warranty
|
Transferable one year, unlimited mileage limited warranty; |
|
Comments
|
Model ID: TRX500FM. Optional power steering. |
