General information |
|
Model name
|

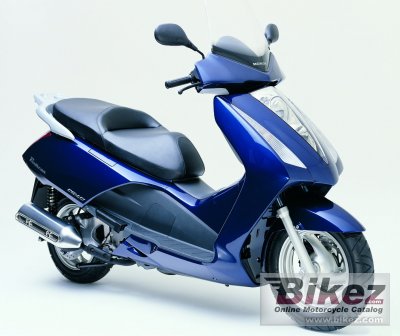

Honda FES 125 Pantheon |
|
Year
|
2007 |
|
Category
|
Scooter |
|
Rating
|
3.4 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
124.6 ccm (7.60 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
13.5 HP (9.9 kW)) @ 9000 RPM |
|
Torque
|
11.7 Nm (1.2 kgf-m or 8.6 ft.lbs) @ 8500 RPM |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
52.4 x 57.8 mm (2.1 x 2.3 inches) |
|
Fuel system
|
Injection. PGM-FI electronic fuel injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Digital transistorised with electronic advance |
|
Cooling system
|
Liquid |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
33mm telescopic fork, 85.7mm axle travel |
|
Rear suspension
|
Dual-damper unit swingarm, 98.1mm axle travel |
|
Front brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
139.9 kg (308.4 pounds) |
|
Power/weight ratio
|
0.0965 HP/kg |
|
Seat height
|
770 mm (30.3 inches) If adjustable, lowest setting. |
|
Overall length
|
2090 mm (82.3 inches) |
|
Ground clearance
|
145 mm (5.7 inches) |
|
Wheelbase
|
1490 mm (58.7 inches) |
|
Fuel capacity
|
9.40 litres (2.48 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
