General information |
Model
|

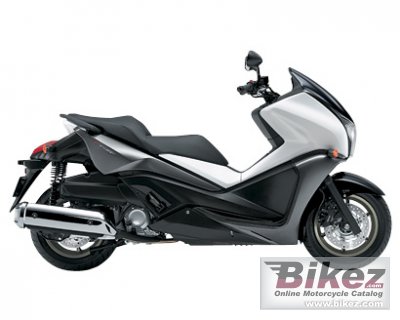

Honda Faze ABS |
Year of manufacture
|
2011 |
Type
|
Scooter |
Rating
|
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
Engine and transmission |
Engine size
|
248.0 ccm (15.13 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Engine details
|
MF11E engine |
Output
|
22.8 HP (16.6 kW)) @ 7500 RPM |
Torque
|
23.0 Nm (2.3 kgf-m or 17.0 ft.lbs) @ 6000 RPM |
Compression
|
10.2:1 |
Bore x stroke
|
68.0 x 68.5 mm (2.7 x 2.7 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection. PGM-FI |
Fuel control
|
Overhead Cams (OHC) |
Cooling system
|
Liquid |
Gearbox
|
Automatic |
Transmission type
|
Belt (final drive) |
Driveline
|
V-matic |
Fuel consumption
|
2.44 litres/100 km (41.0 km/l or 96.40 mpg) |
Greenhouse gases
|
56.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
Chassis, suspension, brakes and wheels |
Frame type
|
Backbone |
Front suspension
|
Telescopic fork |
Rear suspension
|
Swing Type Unit |
Front tire
|
110/90-13M |
Rear tire
|
140/70-13M |
Front brakes
|
Single disc. Anti-lock braking (ABS) |
Rear brakes
|
Single disc. Anti-lock braking (ABS) |
Seat
|
2-person seat |
Physical measures and capacities |
Dry weight
|
183.0 kg (403.4 pounds) |
Weight incl. oil, gas, etc
|
194.0 kg (427.7 pounds) |
Power/weight ratio
|
0.1246 HP/kg |
Seat height
|
755 mm (29.7 inches) If adjustable, lowest setting. |
Overall height
|
1540 mm (60.6 inches) |
Overall length
|
2180 mm (85.8 inches) |
Ground clearance
|
130 mm (5.1 inches) |
Wheelbase
|
1540 mm (60.6 inches) |
Fuel capacity
|
12.00 litres (3.17 US gallons) |
Other specifications |
Color options
|
Gray/white, blue/gray |
Starter
|
Electric |
Comments
|
Sold in Japan |
