Honda Dylan 125 20062006 Honda Dylan 125 specifications, pictures, reviews and rating |

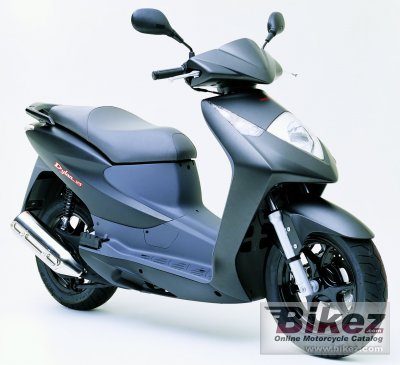

 2006 Honda Dylan 125. Picture credits - Honda. Submit more pictures.
|
|
| Honda's profilation of this bike |
| The exciting Dylan is a sharp-looking and sporty-handling runabout that brightens up every day with its swift, sure performance and carefree riding ease. With full-sized proportions for full-bodied comfort, the Dylan’s power comes on smooth and strong from a compact and highly reliable liquid-cooled 4-stroke engine that starts right up at the touch of a button. |
| General information | |
|---|---|
| Model name | Honda Dylan 125 |
| Year | 2006 |
| Category | Scooter |
| Rating | 3.5 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 125.0 ccm (7.63 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 13.5 HP (9.9 kW)) @ 9000 RPM |
| Torque | 11.3 Nm (1.2 kgf-m or 8.3 ft.lbs) @ 7250 RPM |
| Compression | 11.0:1 |
| Bore x stroke | 52.4 x 57.8 mm (2.1 x 2.3 inches) |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Digital transistorised with electronic advance |
| Cooling system | Liquid |
| Gearbox | 4-speed |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 120.0 kg (264.6 pounds) |
| Power/weight ratio | 0.1128 HP/kg |
| Seat height | 795 mm (31.3 inches) If adjustable, lowest setting. |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1330 mm (52.4 inches) |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 06 Honda Dylan 125 discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2006 Honda Dylan 125 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Honda bike | |
Touring capabilities for the 2006 Honda Dylan 125:  (67.0 out of 100)Click here for complete rating. You can also compare bikes. |
|
