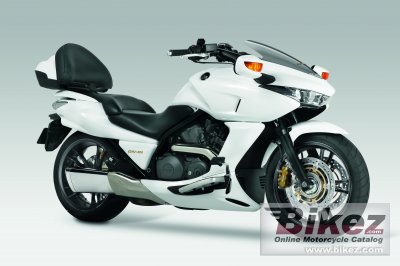

Honda DN-01 20122012 Honda DN-01 specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| It’s like nothing you’ve ever seen on two wheels. And for good reason: Honda’s stunning new DN-01 is in a class of its own—the world’s first crossover bike. Its styling and seating position alone set it completely apart, showing influence from the world of our sportbikes, sport touring machines, and cruisers. But underneath that bodywork the DN-01 is even more revolutionary, offering Honda’s radical new Human Friendly Transmission. |
| General information | |
|---|---|
| Model name | Honda DN-01 |
| Year model | 2012 |
| Type | Allround |
| Price as new | US$ 15599. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.3 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 680.0 ccm (41.49 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | 52 degree V-twin |
| Compression | 10.0:1 |
| Bore x stroke | 81.0 x 66.0 mm (3.2 x 2.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. PGM-FI with automatic enrichment circuit, 40mm throttle bodies and 12-hole injectors |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Digital transistorized with electronic advance |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Emission details | Meets current California Air Resources Board (CARB) and EPA standards |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 28.5° |
| Trail | 114 mm (4.5 inches) |
| Front suspension | 41mm telescopic fork with 4.2 inches travel |
| Rear suspension | Pro Arm single-side swingarm with single shock, seven-position spring preload adjustability |
| Rear wheel travel | 119 mm (4.7 inches) |
| Front tire | 130/70-ZR17 |
| Rear tire | 190/50-ZR17 |
| Front brakes | Double disc. ABS. CBS three-piston calipers. |
| Diameter | 296 mm (11.7 inches) |
| Rear brakes | Single disc. ABS. CBS three-piston calipers. |
| Diameter | 276 mm (10.9 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 269.9 kg (595.0 pounds) |
| Seat height | 691 mm (27.2 inches) If adjustable, lowest setting. |
| Wheelbase | 1605 mm (63.2 inches) |
| Fuel capacity | 15.14 litres (4.00 US gallons) |
| Other specifications | |
| Color options | Candy Dark Red, Black |
| Starter | Electric |
| Comments | Model ID: NSA700A |
| Update specs | Report missing specs or required updates. |
