General information |
|
Model
|

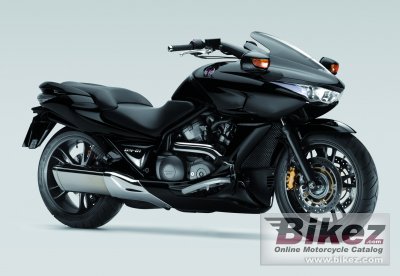

Honda DN-01 |
|
Year model
|
2009 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 14999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
4.0 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
680.0 ccm (41.49 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
81.0 x 66.0 mm (3.2 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. PGM-FI with automatic enrichment circuit, 40mm throttle bodies and 12-hole injectors |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Digital transistorized with electronic advance |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
28.5° |
|
Trail
|
114 mm (4.5 inches) |
|
Front suspension
|
41mm telescopic fork |
|
Front wheel travel
|
107 mm (4.2 inches) |
|
Rear suspension
|
Pro Arm single-side swingarm with single shock, seven-position spring preload adjustability |
|
Rear wheel travel
|
119 mm (4.7 inches) |
|
Front tire
|
130/70-ZR17 |
|
Rear tire
|
190/50-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
296 mm (11.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
276 mm (10.9 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
269.9 kg (595.0 pounds) |
|
Seat height
|
691 mm (27.2 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1605 mm (63.2 inches) |
|
Fuel capacity
|
15.14 litres (4.00 US gallons) |
|
Other specifications |
|
Color options
|
Candy Dark Red, Black |
|
Starter
|
Electric |
|
Comments
|
HFT continuously variable, hydromechanical two-mode automatic with six-speed manual mode. Model ID: NSA700A. |
