General information |
|
Model name
|

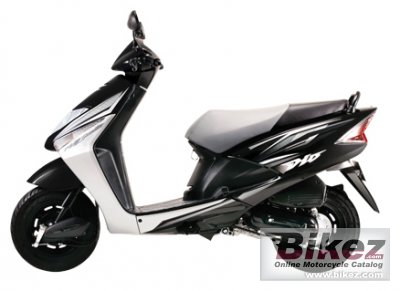

Honda Dio |
|
Year of manufacture
|
2011 |
|
Type
|
Scooter |
|
Rating
|
3.7 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
102.0 ccm (6.22 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
7.0 HP (5.1 kW)) @ 7000 RPM |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Cams (OHC) |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
V-matic |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Bottom link with spring loaded hydraulic dampers |
|
Rear suspension
|
Unit swing with spring loaded hydraulic damper |
|
Front tire
|
90/100-10 |
|
Rear tire
|
90/100-10 |
|
Front brakes
|
Expanding brake (drum brake) |
|
Diameter
|
130 mm (5.1 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
130 mm (5.1 inches) |
|
Physical measures and capacities |
|
Seat height
|
765 mm (30.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1106 mm (43.5 inches) |
|
Overall length
|
1757 mm (69.2 inches) |
|
Overall width
|
712 mm (28.0 inches) |
|
Ground clearance
|
145 mm (5.7 inches) |
|
Wheelbase
|
1238 mm (48.7 inches) |
|
Other specifications |
|
Color options
|
Red, blue, green, black, purple |
|
Starter
|
Electric & kick |
|
Electrical
|
12 V 4 Ah maintenance free battery |
|
Comments
|
Sold in India. |
