General information |
|
Model
|

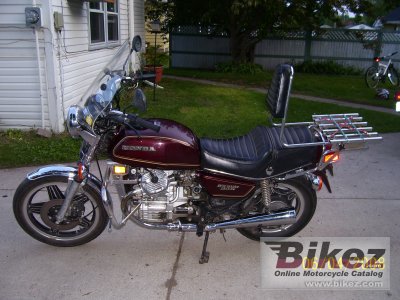

Honda CX 500 Deluxe |
|
Model year
|
1979 |
|
Category
|
Touring |
|
Rating
|
3.2 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Displacement
|
496.0 ccm (30.27 cubic inches) |
|
Engine type
|
Twin, four-stroke |
|
Power output
|
50.0 HP (36.5 kW)) @ 9000 RPM |
|
Max RPM
|
10500 |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
78.0 x 52.0 mm (3.1 x 2.0 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Keihin 35mm CV |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
CDI |
|
Lubrication system
|
Forced Pressure and Wet Sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Wet, Multi Plate |
|
Fuel consumption
|
4.52 litres/100 km (22.1 km/l or 52.04 mpg) |
|
Greenhouse gases
|
104.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Diamond |
|
Rake (fork angle)
|
26.9° |
|
Trail
|
105 mm (4.1 inches) |
|
Front suspension
|
Telescopic Forks |
|
Front wheel travel
|
139 mm (5.5 inches) |
|
Rear suspension
|
Swingarm |
|
Rear wheel travel
|
85 mm (3.3 inches) |
|
Front tire
|
100/90-19 |
|
Rear tire
|
130/90-16 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
205.0 kg (452.0 pounds) |
|
Power/weight ratio
|
0.2439 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1165 mm (45.9 inches) |
|
Overall length
|
2185 mm (86.0 inches) |
|
Overall width
|
865 mm (34.1 inches) |
|
Ground clearance
|
145 mm (5.7 inches) |
|
Wheelbase
|
1455 mm (57.3 inches) |
|
Fuel capacity
|
17.03 litres (4.50 US gallons) |
|
Reserve fuel capacity
|
5.67 litres (1.50 US gallons) |
|
Oil capacity
|
3.00 litres (3.17 US quarts) |
|
Other specifications |
|
Color options
|
Wine Red |
|
Starter
|
Electric |
