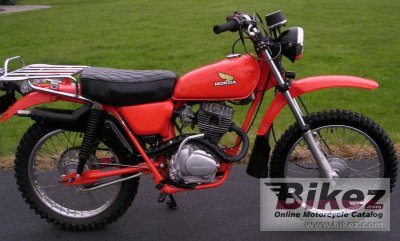

Honda CT 125 19771977 Honda CT 125 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Honda CT 125 |
| Model year | 1977 |
| Category | Enduro / offroad |
| Rating | 3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 124.0 ccm (7.57 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Top speed | 91.7 km/h (57.0 mph) |
| Compression | 8.0:1 |
| Bore x stroke | 56.5 x 49.5 mm (2.2 x 1.9 inches) |
| Fuel system | Carburettor |
| Ignition | Kick |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Manual |
| Exhaust system | Single black exaust |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 28.7° |
| Trail | 110 mm (4.3 inches) |
| Front suspension | Inverted Forks |
| Rear suspension | Twin Rear Spring |
| Front tire | 3.00-19 |
| Rear tire | 4.00-18 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 108.0 kg (238.1 pounds) |
| Seat height | 813 mm (32.0 inches) If adjustable, lowest setting. |
| Alternate seat height | 813 mm (32.0 inches) If adjustable, highest setting. |
| Overall height | 1100 mm (43.3 inches) |
| Overall length | 2035 mm (80.1 inches) |
| Overall width | 900 mm (35.4 inches) |
| Wheelbase | 1295 mm (51.0 inches) |
| Fuel capacity | 6.05 litres (1.60 US gallons) |
| Reserve fuel capacity | 1.51 litres (0.40 US gallons) |
| Other specifications | |
| Color options | Orange |
| Starter | Kick |
| Modifications compared to previous model | This Motorcycle was made for one year only. |
