Honda CRF70F 20122012 Honda CRF70F specifications, pictures, reviews and rating |

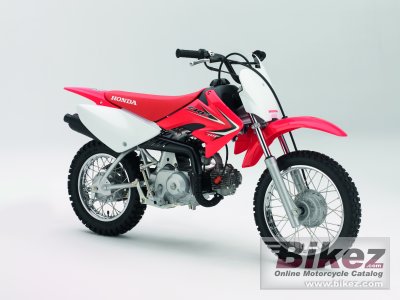

2012 Honda CRF70F. Image credits - Honda.
| Honda's profilation of this bike |
| A low-maintenance 72cc air-cooled single-cylinder four-stroke engine and easy-shifting 3-speed semi-automatic transmission make the exciting CRF70F a great introduction to off-road motorcycling. |
| General information | |
|---|---|
| Model | Honda CRF70F |
| Year | 2012 |
| Category | Enduro / offroad |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 72.0 ccm (4.39 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 9.0:1 |
| Bore x stroke | 47.0 x 41.4 mm (1.9 x 1.6 inches) |
| Fuel system | Carburettor. 13mm piston-valve carburator |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CD |
| Cooling system | Air |
| Gearbox | 3-speed |
| Transmission type | Chain (final drive) |
| Clutch | Automatic |
| Driveline | #420 chain; 15T/36T |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 27.0° |
| Trail | 62 mm (2.4 inches) |
| Front suspension | 27mm leading-axle telescopic fork |
| Front wheel travel | 100 mm (3.9 inches) |
| Rear suspension | Mono-cushion swingarm |
| Rear wheel travel | 90 mm (3.5 inches) |
| Front tire | 2.50-14 |
| Rear tire | 3.00-12 |
| Front brakes | Expanding brake (drum brake) |
| Diameter | 95 mm (3.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 95 mm (3.7 inches) |
| Wheels | Steel rim/wire spoke |
| Physical measures and capacities | |
| Dry weight | 58.0 kg (127.9 pounds) |
| Seat height | 663 mm (26.1 inches) If adjustable, lowest setting. |
| Overall height | 885 mm (34.8 inches) |
| Overall length | 1569 mm (61.8 inches) |
| Overall width | 694 mm (27.3 inches) |
| Ground clearance | 178 mm (7.0 inches) |
| Wheelbase | 1067 mm (42.0 inches) |
| Fuel capacity | 5.50 litres (1.45 US gallons) |
| Reserve fuel capacity | 1.10 litres (0.29 US gallons) |
| Other specifications | |
| Color options | Red/white |
| Starter | Kick |
| Comments | Model ID: CRF70F |
