Honda's profilation of this bike |
You have to consider two things when you choose a motorcycle for your youth rider: Their size and skill. It’s built to build confidence, and features the same durable engine design, and smooth power as the CRF50F, so it feels right and rides right. |
General information |
Motorcycle name
|

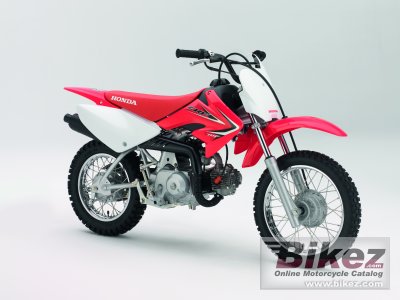

Honda CRF70F |
Model year
|
2011 |
Category
|
Trial |
Price as new | US$ 1899. MSRP depends on country, taxes, accessories, etc. |
Rating
|
2.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
72.0 ccm (4.39 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Compression
|
9.0:1 |
Bore x stroke
|
47.0 x 41.4 mm (1.9 x 1.6 inches) |
Fuel system
|
Carburettor. 13mm piston-valve carburator |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
CD |
Cooling system
|
Air |
Gearbox
|
3-speed |
Transmission type
|
Chain (final drive) |
Driveline
|
#420 chain; 15T/36T |
Emission details
|
Meets current California Air Resource Board (CARB) and EPA off-road emissions standards. |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
27.0° |
Trail
|
62 mm (2.4 inches) |
Front suspension
|
27.0mm telescopic fork |
Front wheel travel
|
81 mm (3.2 inches) |
Rear suspension
|
Single-shock |
Rear wheel travel
|
89 mm (3.5 inches) |
Front tire
|
2.50-14 |
Rear tire
|
3.00-12 |
Front brakes
|
Expanding brake (drum brake) |
Rear brakes
|
Expanding brake (drum brake) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
63.1 kg (139.0 pounds) |
Seat height
|
663 mm (26.1 inches) If adjustable, lowest setting. |
Ground clearance
|
178 mm (7.0 inches) |
Wheelbase
|
1067 mm (42.0 inches) |
Fuel capacity
|
4.92 litres (1.30 US gallons) |
Other specifications |
Color options
|
Red |
Comments
|
Model ID: CRF70F |
