General moped information |
|
Motorcycle name
|

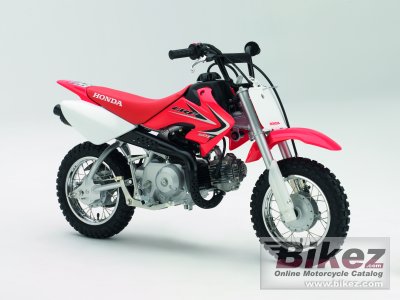

Honda CRF50F |
|
Year model
|
2012 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.0 ccm (2.99 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
39.0 x 41.4 mm (1.5 x 1.6 inches) |
|
Fuel system
|
Carburettor. 13mm piston-valve carburator |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CD |
|
Cooling system
|
Air |
|
Gearbox
|
3-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Automatic |
|
Driveline
|
#420 chain; 14T/37T |
|
Emission details
|
Meets current CARB and EPA standards. |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
25.0° |
|
Front suspension
|
21.7mm inverted telescopic fork |
|
Front wheel travel
|
90 mm (3.5 inches) |
|
Rear suspension
|
Monoshock with cantilever-type swingarm |
|
Rear wheel travel
|
70 mm (2.8 inches) |
|
Front tire
|
2.50-10 |
|
Rear tire
|
2.50-10 |
|
Front brakes
|
Expanding brake (drum brake) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Wheels
|
Wire spoke |
|
Physical measures and capacities |
|
Dry weight
|
47.0 kg (103.6 pounds) |
|
Seat height
|
549 mm (21.6 inches) If adjustable, lowest setting. |
|
Ground clearance
|
147 mm (5.8 inches) |
|
Wheelbase
|
914 mm (36.0 inches) |
|
Fuel capacity
|
3.00 litres (0.79 US gallons) |
|
Reserve fuel capacity
|
0.80 litres (0.21 US gallons) |
|
Other specifications |
|
Color options
|
Red/white |
|
Starter
|
Kick |
