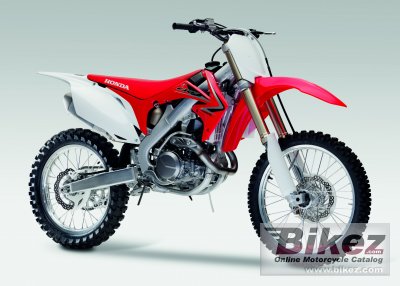

Honda CRF450R 20092009 Honda CRF450R specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| The CRF450R will surely become the king of the flyways having so many race-dominating advantages. Explosive power comes from the liquid-cooled, four-stroke, four-valve single cylinder engine, which is housed in the most advanced aluminum chassis design. |
| General information | |
|---|---|
| Model name | Honda CRF450R |
| Year | 2009 |
| Category | Enduro / offroad |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 449.0 ccm (27.40 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 50.7 HP (37.0 kW)) @ 9000 RPM |
| Torque | 46.9 Nm (4.8 kgf-m or 34.6 ft.lbs) @ 7000 RPM |
| Compression | 12.0:1 |
| Bore x stroke | 96.0 x 62.1 mm (3.8 x 2.4 inches) |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Computer-controlled digital transistorised with electronic advance |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple discs, cable operated |
| Driveline | Type - Drive Chain |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 27.4° |
| Front suspension | HPSD steering damper, 47mm Showa inverted leading-axle twin-chamber cartridge-type telescopic fork with 16-step adjustable compression and rebound damping |
| Front wheel travel | 315 mm (12.4 inches) |
| Rear suspension | Pro-Link with Showa damper, adjustable low-speed (13-step) and high-speed (3.5-turn) compression and 17-step rebound damping |
| Rear wheel travel | 320 mm (12.6 inches) |
| Front tire | 80/100-21 |
| Rear tire | 110/90-19 |
| Front brakes | Single disc. Two-piston calipers. |
| Diameter | 240 mm (9.4 inches) |
| Rear brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 107.0 kg (235.9 pounds) |
| Weight incl. oil, gas, etc | 118.0 kg (260.1 pounds) |
| Power/weight ratio | 0.4737 HP/kg |
| Seat height | 955 mm (37.6 inches) If adjustable, lowest setting. |
| Overall height | 1270 mm (50.0 inches) |
| Overall length | 2189 mm (86.2 inches) |
| Overall width | 810 mm (31.9 inches) |
| Ground clearance | 340 mm (13.4 inches) |
| Wheelbase | 1489 mm (58.6 inches) |
| Fuel capacity | 7.20 litres (1.90 US gallons) |
| Other specifications | |
| Color options | Red |
| Starter | Kick |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | SAE 10W-30 |
| Oil filter | HiFlo HF-116 |
| Brake fluid | DOT 4 |
| Coolant | 1.00 litres (0.26 US gallons) |
| Spark plugs | SILMAR9A9S |
| Idle speed | 1800 +/- 100 RPM |
| Chain size | 520 |
| Chain links | 116 |
| Sprockets | 13/48 (front/rear) |
| Fork tube size | 48 mm (1.9 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
