General information |
Model
|

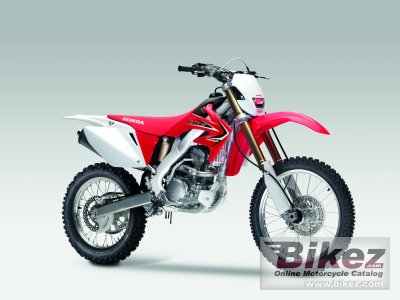

Honda CRF250X |
Year of manufacture
|
2011 |
Type
|
Trial |
Price as new | US$ 7149. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
249.0 ccm (15.19 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Compression
|
12.9:1 |
Bore x stroke
|
78.0 x 52.2 mm (3.1 x 2.1 inches) |
Fuel system
|
Carburettor. Keihin 37mm flat-slide carburetor with Throttle Position Sensor (TPS) |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
CD with electronic advance and lighting coil |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Driveline
|
#520 T-ring-sealed chain; 13T/49T |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
27.5° |
Trail
|
118 mm (4.6 inches) |
Front suspension
|
47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability |
Front wheel travel
|
315 mm (12.4 inches) |
Rear suspension
|
Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low-speed (13 positions) and highspeed (3.5 turns) |
Rear wheel travel
|
315 mm (12.4 inches) |
Front tire
|
80/100-21 |
Rear tire
|
100/100-18 |
Front brakes
|
Double disc |
Diameter
|
240 mm (9.4 inches) |
Rear brakes
|
Single disc |
Diameter
|
240 mm (9.4 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
114.8 kg (253.0 pounds) |
Seat height
|
958 mm (37.7 inches) If adjustable, lowest setting. |
Ground clearance
|
345 mm (13.6 inches) |
Wheelbase
|
1481 mm (58.3 inches) |
Fuel capacity
|
7.19 litres (1.90 US gallons) |
Other specifications |
Color options
|
Red |
Starter
|
Electric & kick |
Comments
|
Model ID: CRF250X |
