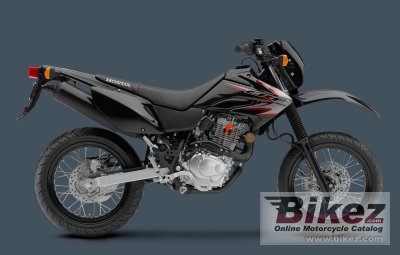

Honda CRF230M 20122012 Honda CRF230M specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| By giving it 17-inch front and rear wheels we´ve made a machine that´s specially tailored for the street, and which can use premium street tires. An electric starter makes getting going a snap, but best of all has to be the new CRF230M´s fuel mileage. |
| General information | |
|---|---|
| Motorcycle name | Honda CRF230M |
| Model year | 2012 |
| Category | Super motard |
| Price as new | US$ 5399. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.1 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 223.0 ccm (13.61 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 9.0:1 |
| Bore x stroke | 65.5 x 66.2 mm (2.6 x 2.6 inches) |
| Fuel system | Carburettor. 30mm CV carburetor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CD |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Driveline | #520 O-ring-sealed chain; 13T/38T |
| Emission details | Meets current CARB and EPA standards |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 23.9° |
| Trail | 99 mm (3.9 inches) |
| Front suspension | 37mm leading-axle Showa fork |
| Front wheel travel | 229 mm (9.0 inches) |
| Rear suspension | Pro-Link Showa single shock with spring preload adjustability |
| Rear wheel travel | 168 mm (6.6 inches) |
| Front tire | 110/70-17 |
| Rear tire | 130/70-17 |
| Front brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 310.0 kg (683.4 pounds) |
| Weight incl. oil, gas, etc | 125.2 kg (276.0 pounds) |
| Seat height | 805 mm (31.7 inches) If adjustable, lowest setting. |
| Ground clearance | 236 mm (9.3 inches) |
| Wheelbase | 1336 mm (52.6 inches) |
| Fuel capacity | 8.71 litres (2.30 US gallons) |
| Other specifications | |
| Color options | Black |
| Factory warranty | One year. Unlimited milage. Transferable. |
| Comments | Model ID: CRF230M |
