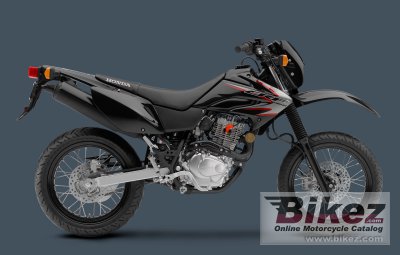

2011 Honda CRF230M

Honda CRF230M 2011


2011 Honda CRF230M specifications, pictures, reviews and rating

Honda's profilation of this bike
The concept is simple: We took our awesome, proven CRF230L dual-sport machine and fine-tuned it for the street. By giving it 17-inch front and rear wheels we´ve made a machine that´s specially tailored for the street, and which can use premium street tires.

General information
Model name Honda CRF230M
Model year 2011
Category Super motard
Price as newUS$ 5399. MSRP depends on country, taxes, accessories, etc.
Rating 2.6  Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike.
Engine and transmission
Displacement 223.0 ccm (13.61 cubic inches)
Engine type Single cylinder, four-stroke
Compression 9.0:1
Bore x stroke 65.5 x 66.2 mm (2.6 x 2.6 inches)
Fuel system Carburettor. 30mm CV carburetor
Fuel control Single Overhead Cams (SOHC)
Ignition CD
Cooling system Air
Gearbox 6-speed
Transmission type Chain (final drive)
Driveline #520 O-ring-sealed chain; 13T/38T
Emission details Meets current CARB and EPA standards
Chassis, suspension, brakes and wheels
Rake (fork angle) 23.9°
Trail 91 mm (3.6 inches)
Front suspension 37mm leading-axle Showa fork
Front wheel travel 229 mm (9.0 inches)
Rear suspension Pro-Link Showa single shock with spring preload adjustability
Rear wheel travel 168 mm (6.6 inches)
Front tire 110/70-17
Rear tire 130/70-17
Front brakes Single disc
Diameter 240 mm (9.4 inches)
Rear brakes Single disc
Diameter 220 mm (8.7 inches)
Physical measures and capacities
Weight incl. oil, gas, etc 125.2 kg (276.0 pounds)
Seat height 805 mm (31.7 inches) If adjustable, lowest setting.
Ground clearance 236 mm (9.3 inches)
Wheelbase 1336 mm (52.6 inches)
Fuel capacity 8.71 litres (2.30 US gallons)
Other specifications
Color options Black
Starter Electric
Factory warranty One year coverage of defects in materials and workmanship
Comments Model ID: CRF230M
