General information |
Model
|

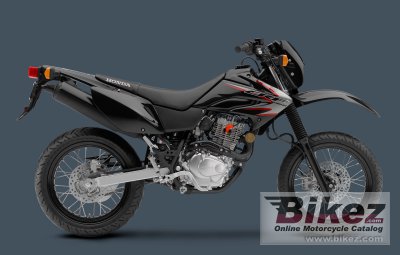

Honda CRF230M |
Year model
|
2010 |
Type
|
Super motard |
Price as new | US$ 5399. MSRP depends on country, taxes, accessories, etc. |
Rating
|
2.9 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
223.0 ccm (13.61 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Compression
|
9.0:1 |
Bore x stroke
|
65.5 x 66.2 mm (2.6 x 2.6 inches) |
Fuel system
|
Carburettor. 30mm CV carburetor |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
CD |
Cooling system
|
Air |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
23.9° |
Trail
|
91 mm (3.6 inches) |
Front suspension
|
37mm leading-axle Showa fork |
Front wheel travel
|
229 mm (9.0 inches) |
Rear suspension
|
Pro-Link Showa single shock with spring preload adjustability |
Rear wheel travel
|
168 mm (6.6 inches) |
Front tire
|
110/70-17 |
Rear tire
|
130/70-17 |
Front brakes
|
Single disc |
Diameter
|
240 mm (9.4 inches) |
Rear brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
125.2 kg (276.0 pounds) |
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
Ground clearance
|
236 mm (9.3 inches) |
Wheelbase
|
1336 mm (52.6 inches) |
Fuel capacity
|
8.70 litres (2.30 US gallons) |
Other specifications |
Color options
|
Black |
Comments
|
Model ID: CRF230M |
