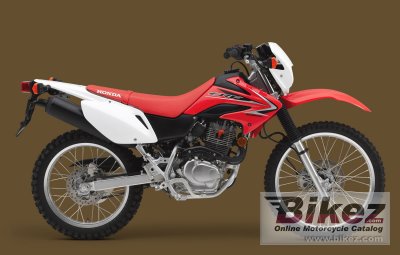

Honda CRF230L 20102010 Honda CRF230L specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| It´s hard knowing where to begin when describing the CRF230L. First and foremost, it´s a dirtbike that happens to be street-legal, so it has the goods—torquey 223cc single-cylinder engine, six-speed gearbox, lightweight chassis, Pro-Link® rear suspension, head- and taillights and turn signals—to take you anywhere, on-road or off. |
| General information | |
|---|---|
| Motorcycle name | Honda CRF230L |
| Year of manufacture | 2010 |
| Type | Enduro / offroad |
| Price as new | US$ 4999. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 223.0 ccm (13.61 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Torque | 65.5 Nm (6.7 kgf-m or 48.3 ft.lbs) |
| Compression | 9.0:1 |
| Bore x stroke | 65.5 x 66.2 mm (2.6 x 2.6 inches) |
| Fuel system | Carburettor. 30mm CV carburetor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CD |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 26.8° |
| Trail | 103 mm (4.1 inches) |
| Front suspension | 37mm leading-axle Showa fork |
| Front wheel travel | 229 mm (9.0 inches) |
| Rear suspension | Pro-link Showa single shock with adjustable spring preload adjustability |
| Rear wheel travel | 160 mm (6.3 inches) |
| Front tire | 2.75-21 |
| Rear tire | 120/80-18 |
| Front brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 121.1 kg (267.0 pounds) |
| Seat height | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Ground clearance | 241 mm (9.5 inches) |
| Wheelbase | 1340 mm (52.8 inches) |
| Fuel capacity | 8.70 litres (2.30 US gallons) |
| Other specifications | |
| Color options | Red |
| Comments | Model ID: CRF230L |
| Update specs | Report missing specs or required updates. |
