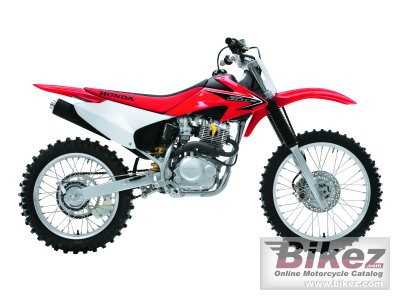

Honda CRF230F 20122012 Honda CRF230F specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| There is no one single feature that makes the CRF230F stand apart. Instead it´s the combination of all its features that has made it one of the most popular trail bikes we build. Features like the bulletproof six-speed transmission. The plush Pro-Link rear suspension with long travel. |
| General information | |
|---|---|
| Model name | Honda CRF230F |
| Year of manufacture | 2012 |
| Type | Enduro / offroad |
| Price as new | US$ 4170. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 223.0 ccm (13.61 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 9.0:1 |
| Bore x stroke | 65.5 x 66.2 mm (2.6 x 2.6 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. 26mm piston-valve carburetor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CD |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Driveline | #520 O-ring-sealed chain; 13T/50T |
| Emission details | Meets current California Air Resources Board (CARB) and EPA off-road emissions standards. |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 27.3° |
| Trail | 112 mm (4.4 inches) |
| Front suspension | 37mm leading-axle Showa fork |
| Front wheel travel | 241 mm (9.5 inches) |
| Rear suspension | Pro-Link Showa single shock with spring-preload adjustability |
| Rear wheel travel | 229 mm (9.0 inches) |
| Front tire | 80/100-21 |
| Rear tire | 100/100-18 |
| Front brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 112.9 kg (249.0 pounds) |
| Seat height | 866 mm (34.1 inches) If adjustable, lowest setting. |
| Ground clearance | 297 mm (11.7 inches) |
| Wheelbase | 1374 mm (54.1 inches) |
| Fuel capacity | 7.19 litres (1.90 US gallons) |
| Other specifications | |
| Color options | Red |
| Starter | Electric & kick |
| Comments | Model ID: CRF230F |
