General information |
|
Motorcycle name
|

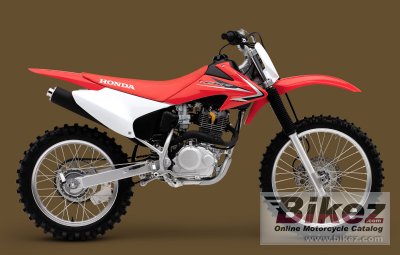

Honda CRF230F |
|
Model year
|
2010 |
|
Category
|
Cross / motocross |
| Price as new | US$ 3899. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
223.0 ccm (13.61 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
65.5 x 66.2 mm (2.6 x 2.6 inches) |
|
Fuel system
|
Carburettor. 26mm piston-valve carburator |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
27.3° |
|
Trail
|
112 mm (4.4 inches) |
|
Front suspension
|
37mm leading-axle Showa fork |
|
Front wheel travel
|
241 mm (9.5 inches) |
|
Rear suspension
|
Pro-Link Showa single-shock with spring-preload adjustability |
|
Rear wheel travel
|
229 mm (9.0 inches) |
|
Front tire
|
80/100-21 |
|
Rear tire
|
100/100-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
112.9 kg (249.0 pounds) |
|
Seat height
|
866 mm (34.1 inches) If adjustable, lowest setting. |
|
Ground clearance
|
297 mm (11.7 inches) |
|
Wheelbase
|
1374 mm (54.1 inches) |
|
Fuel capacity
|
7.19 litres (1.90 US gallons) |
|
Other specifications |
|
Color options
|
Red |
|
Starter
|
Electric & kick |
|
Comments
|
Model ID: CRF230F |
