General information |
|
Model name
|

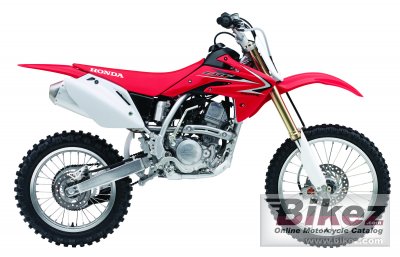

Honda CRF150R2 |
|
Year of manufacture
|
2009 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
149.0 ccm (9.09 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
22.3 HP (16.2 kW)) @ 12500 RPM |
|
Torque
|
13.6 Nm (1.4 kgf-m or 10.0 ft.lbs) @ 10000 RPM |
|
Compression
|
11.7:1 |
|
Bore x stroke
|
66.0 x 43.7 mm (2.6 x 1.7 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Solid-state Capacitor Discharge (CDI) with electronic advance |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
37mm inverted Showa leading-axle telescopic fork with adjustable compression and rebound damping |
|
Front wheel travel
|
241 mm (9.5 inches) |
|
Rear suspension
|
Pro-Link with single Showa damper, adjustable compression and rebound damping |
|
Rear wheel travel
|
291 mm (11.4 inches) |
|
Front tire
|
70/0-(19 |
|
Rear tire
|
90/0-(16 |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
77.0 kg (169.8 pounds) |
|
Power/weight ratio
|
0.2891 HP/kg |
|
Seat height
|
866 mm (34.1 inches) If adjustable, lowest setting. |
|
Overall length
|
1900 mm (74.8 inches) |
|
Ground clearance
|
336 mm (13.2 inches) |
|
Wheelbase
|
1285 mm (50.6 inches) |
|
Fuel capacity
|
4.30 litres (1.14 US gallons) |
|
Other specifications |
|
Color options
|
Red |
|
Starter
|
Kick |
|
Comments
|
Model also called CBF150RB. |
