Honda's profilation of this bike |
From a performance standpoint, it´s hard to outgrow the CRF150R. But as racers get bigger, they need a slightly bigger CRF150, and that´s where the Expert comes in. |
General information |
Motorcycle name
|

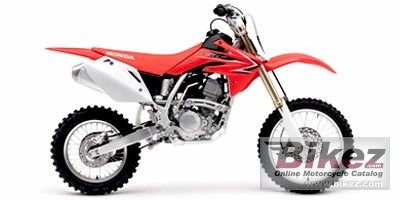

Honda CRF150F Expert |
Year
|
2009 |
Category
|
Cross / motocross |
Price as new | US$ 4399. MSRP depends on country, taxes, accessories, etc. |
Rating
|
2.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
149.0 ccm (9.09 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Bore x stroke
|
66.0 x 43.7 mm (2.6 x 1.7 inches) |
Fuel system
|
Carburettor. Keihin 32mm flat slide with throttle position sensor (TPS) carburetor |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
Solid-state CD with electronic advance |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
27.0° |
Trail
|
96 mm (3.8 inches) |
Front suspension
|
37mm fully adjustable leading-axle inverted Showa cartridge fork |
Front wheel travel
|
274 mm (10.8 inches) |
Rear suspension
|
Pro-Link fully adjustable Showa single shock |
Rear wheel travel
|
292 mm (11.5 inches) |
Front tire
|
70/18-19 |
Rear tire
|
90/90-16 |
Front brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Rear brakes
|
Single disc |
Diameter
|
190 mm (7.5 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
84.8 kg (187.0 pounds) |
Seat height
|
866 mm (34.1 inches) If adjustable, lowest setting. |
Ground clearance
|
335 mm (13.2 inches) |
Wheelbase
|
1285 mm (50.6 inches) |
Fuel capacity
|
4.31 litres (1.14 US gallons) |
Other specifications |
Color options
|
Red, Black |
Comments
|
Model ID: CRF150RB |
