| General information |
|---|

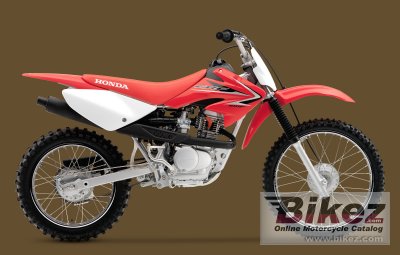

| Model | Honda CRF100F |
| Year | 2010 |
| Category | Cross / motocross |
| Price as new | US$ 2699. MSRP depends on country, taxes, accessories, etc. |
| Rating | 2.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 99.0 ccm (6.04 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 9.4:1 |
| Bore x stroke | 53.0 x 45.0 mm (2.1 x 1.8 inches) |
| Fuel system | Carburettor. 22mm piston-valve carburator |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CD |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | 27.0mm leading-axle Showa fork; 5.2-inch travel |
| Rake (fork angle) | 28.5° |
| Trail | 99 mm (3.9 inches) |
| Front suspension | 27.0mm leading-axle Showa fork |
| Front wheel travel | 132 mm (5.2 inches) |
| Rear suspension | Pro-Link Showa single shock |
| Rear wheel travel | 147 mm (5.8 inches) |
| Front tire | 2.50-19 |
| Rear tire | 3.00-16 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc | 78.9 kg (174.0 pounds) |
| Seat height | 785 mm (30.9 inches) If adjustable, lowest setting. |
| Ground clearance | 254 mm (10.0 inches) |
| Wheelbase | 1250 mm (49.2 inches) |
| Fuel capacity | 4.92 litres (1.30 US gallons) |
| Other specifications |
|---|
| Color options | Red |
| Starter | Electric & kick |
| Comments | Model ID: CRF100F |
