1987 Honda CR 500

Honda CR 500 1987


1987 Honda CR 500 specifications, pictures, reviews and rating

1987 Honda CR 500

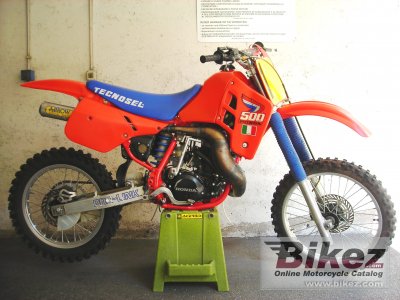

1987 Honda CR 500. Picture submitted by anonymous user.. Submit more pictures.
General information
Model Honda CR 500
Year 1987
Category Cross / motocross
Rating 3.5  Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike.
Engine and transmission
Displacement 495.0 ccm (30.20 cubic inches)
Engine type Single cylinder, two-stroke
Power 63.0 HP (46.0 kW))
Compression 6.8:1
Fuel system Carburettor. Mikuni flat-slide
Fuel control Membrane & power valve
Ignition CDI
Lubrication system Pre-mix
Cooling system Liquid
Gearbox 5-speed
Transmission type Chain (final drive)
Clutch Wet plate
Exhaust system Expansion chamber
Chassis, suspension, brakes and wheels
Frame type Welded steel tubing
Front suspension Conventional forks
Rear suspension Pro-link
Front tire -21
Rear tire -19
Front brakes Single disc. Hydraulic single-piston
Rear brakes Single disc. Hydraulic single-piston
Physical measures and capacities
Weight incl. oil, gas, etc 102.1 kg (225.0 pounds)
Other specifications
Color options Red
Starter Kick
Modifications compared to previous model Better suspension tuning
