General information |
Motorcycle name
|

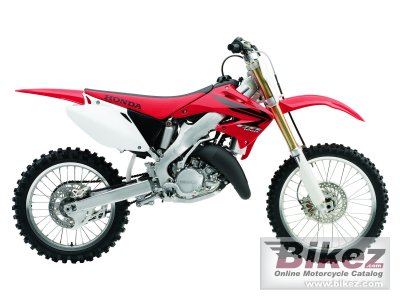

Honda CR 125 R |
Year model
|
2007 |
Type
|
Cross / motocross |
Price as new | US$ 5499. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
125.0 ccm (7.63 cubic inches) |
Type of engine
|
Single cylinder, two-stroke |
Compression
|
8.6:1 |
Bore x stroke
|
54.0 x 54.5 mm (2.1 x 2.1 inches) |
Fuel system
|
Carburettor. 38.0mm Mikuni TMX with throttle position sensor (TPS) |
Ignition
|
Digital ignition with three-dimensional mapping and electronic advance |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
25.8° |
Trail
|
100 mm (3.9 inches) |
Front suspension
|
46.0mm inverted Kayaba cartridge fork with 18-position rebound and 20-position compression-damping adjustability |
Front wheel travel
|
305 mm (12.0 inches) |
Rear suspension
|
Pro-Link Kayaba single-shock with spring-preload, 30-position rebound-damping adjustability, and compression-damping adjustment separated into low-speed (18 positions) and high-speed (2 turns) |
Rear wheel travel
|
318 mm (12.5 inches) |
Front tire
|
80/100-21 |
Rear tire
|
100/90-19 |
Front brakes
|
Single disc |
Diameter
|
240 mm (9.4 inches) |
Rear brakes
|
Single disc |
Diameter
|
240 mm (9.4 inches) |
Physical measures and capacities |
Dry weight
|
89.4 kg (197.0 pounds) |
Seat height
|
947 mm (37.3 inches) If adjustable, lowest setting. |
Ground clearance
|
351 mm (13.8 inches) |
Wheelbase
|
1471 mm (57.9 inches) |
Fuel capacity
|
7.57 litres (2.00 US gallons) |
Other specifications |
Color options
|
Red |
Comments
|
Model ID: CR125R |
