General information |
|
Model name
|

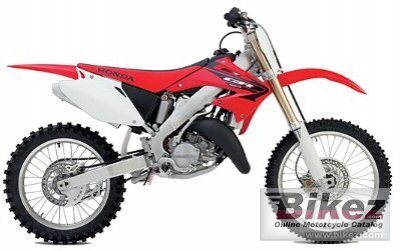

Honda CR 125 R |
|
Year of manufacture
|
2005 |
|
Type
|
Cross / motocross |
| Price as new | US$ 5299. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
125.0 ccm (7.63 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Compression
|
8.6:1 |
|
Bore x stroke
|
54.0 x 54.5 mm (2.1 x 2.1 inches) |
|
Fuel system
|
Carburettor. 38.0mm Mikuni TMX with throttle position sensor (TPS) |
|
Ignition
|
Digital ignition with three-dimensional mapping and electronic advance |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
25.8° |
|
Trail
|
100 mm (3.9 inches) |
|
Front suspension
|
46.0mm inverted Kayaba cartridge fork with 18-position rebound and 20-position compression-damping adjustability |
|
Front wheel travel
|
318 mm (12.5 inches) |
|
Rear suspension
|
Pro-Link Kayaba single-shock with spring-preload, 30-position rebound-damping adjustability, and compression-damping adjustment separated into low-speed (18 positions) and high-speed (2 turns); |
|
Rear wheel travel
|
318 mm (12.5 inches) |
|
Front tire
|
80/70-21 |
|
Rear tire
|
100/90-19 |
|
Front brakes
|
Single disc. 2-piston calipers |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
87.5 kg (192.9 pounds) |
|
Seat height
|
947 mm (37.3 inches) If adjustable, lowest setting. |
|
Ground clearance
|
351 mm (13.8 inches) |
|
Wheelbase
|
1471 mm (57.9 inches) |
|
Fuel capacity
|
7.57 litres (2.00 US gallons) |
|
Other specifications |
|
Color options
|
Red |
|
Comments
|
Model ID: CR125R |
