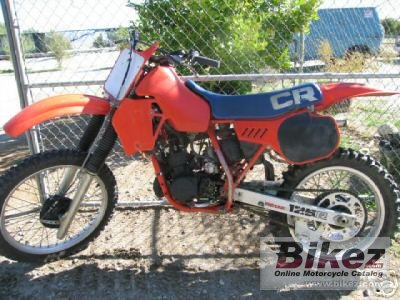

Will Elsner. Click to submit more pictures.

1983 Honda CR 125 R

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Tip a friend
List related bikes

General information
Model:	Honda CR 125 R
Year:	1983
Category:	Cross / motocross
Rating:	61.5 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	124.00 ccm (7.57 cubic inches)
Engine type:	Single cylinder, two-stroke
Power:	31.00 HP (22.6 kW)) @ 11000 RPM
Torque:	20.00 Nm (2.0 kgf-m or 14.8 ft.lbs) @ 10500 RPM
Max RPM:	12000
Compression:	8.0:1
Fuel system:	Carburettor. Keihin 32 mm
Ignition:	CDI
Cooling system:	Liquid
Gearbox:	6-speed
Transmission type, final drive:	Chain
Clutch:	Wet plate
Chassis, suspension, brakes and wheels
Front wheel travel:	310 mm (12.2 inches)
Rear suspension:	Monoshock
Front tyre:	90/80-21
Rear tyre:	130/80-18
Front brakes:	Expanding brake (drum brake)
Rear brakes:	Expanding brake (drum brake)
Physical measures and capacities
Dry weight:	86.0 kg (189.6 pounds)
Power/weight ratio:	0.3605 HP/kg
Seat height:	930 mm (36.6 inches) If adjustable, lowest setting.
Overall height:	1,200 mm (47.2 inches)
Overall length:	2,115 mm (83.3 inches)
Overall width:	845 mm (33.3 inches)
Ground clearance:	345 mm (13.6 inches)
Wheelbase:	1,435 mm (56.5 inches)
Fuel capacity:	6.00 litres (1.59 gallons)
Other specifications
Color options:	Red
Starter:	Kick
Modifications compared to previous model:	Drivechain has moved to the left side of the bike.
Further information
Insurance costs	Get estimated US insurance cost with a quote from Allstate Motorcycle Insurance.
Parts finder	Chaparral provides online schematics & OEM parts for the US. Motorcycle Superstore provides an easy-to-use parts finder. Ships to the US, Canada, UK and Australia. CMSNL ships low cost OEM motorcycle parts to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Also check out our overview of motorcycle webshops at Bikez.info.
Motocross parts	Parts and accessories available from MotoSport.com. Ships to the North America, the EU, Australia, India, etc.
Ask questions	Join the 83 Honda CR 125 R discussion group or the general Honda discussion group.
Loans, tests, etc	Search the web for dealers, loan costs, tests, customizing, etc.
Related bikes	List related bikes for comparison of specs.
